Kb40 New Product 40 Keys Cherry Switch USB Programmable Keyboard Kb40

Product Description

General

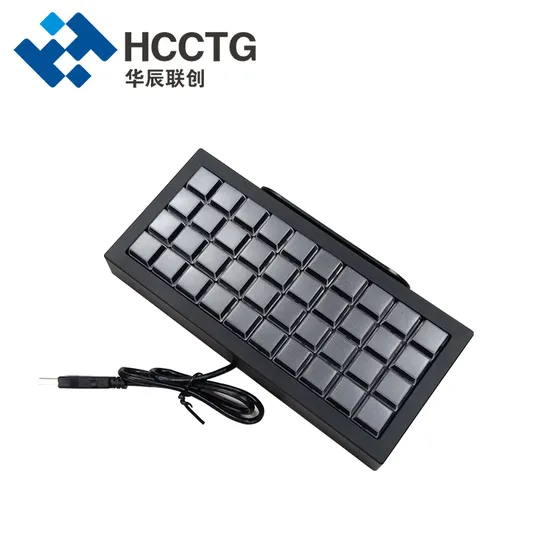

KB40 is mechanical fully programmable keyboard; Black; USB interface.
KB40M is membrane keys fully programmable keyboard; Black; USB interface.
Optional: Magnetic card reader module (MSR).
Feature Any adjacent two keys can be defined to be a double fold(1*2) key, any four adjacent single key can be defined to be a four fold(2*2) key. Various function combination keys can be set arbitrarily, each key can be programmed up to 180 characters in a single layer. Support function of "True status lock", any key can be defined as Num lock,Caps lock, Scroll lock, Shift, Ctrl, Alt, Esc, F1, Caps lock and so on. Provide "multi-layer key" function, keyboard can be defined through the layer to cooperate with POS management software for hierarchical privilege management or expand the number and function of keys. Each key can define up to 15 switching layers, making POS operation more flexible and changeable. 100 years data retention without additional battery EMC radiation meets Class B requirements, antistatic design(Refer to GB 4943,GB/T 1762) Product Parameters Specification

Physical Pproperties
Main Material	ABS
N.W	With MSR: 560g/PCS;12.5kg/CTN Without MSR: 400g/PCS;9.5kg/CTN
Cable	0.4M(Customized)
Electrical Specification
Working Voltage	DC+5V ±10%
Working Current	≤150mA
Insulation Resistance	>50MΩ
Contact Resistance	<1KΩ
Keyboard Feature
Key	Cherry Mechanical switch / Membrane
Conductivity	60±5gf
Initial Strength	40gf
Total Stroke Strength	60±5gf
Key Pressure	55±10g
Pre-stroke	2.0±0.3mm
Total Stroke	4.0mm
Key Lifetime	Cherry Mechanical switch:50 million times Membrane: 10 million times;
Support Interface	USB
Operating System	DOS, Win9X, Me, Win2K,XP ,Win7,Win8,Win10
MSR Specification
Accord to ISO7811 AAMVA,JIS/
Swipe Speed	10-120cm/s
Head Lifetime	≥50 0000times
Coercivity Range	300-4000 Oe
The Density of Magnetic Stripe	Track 1--210BPI with max 76 characters
	Track 2--210BPI with max 104 characters or 75BPI with 37 characters
	Track 3--210BPI with max 104 characters
Track	1 or 2 or 3 track; 1,2track; 2,3track; 1,2,3track
Power Supply	DC+3.3V
Environmental Characteristics
Working Temperature	0±45ºC
Working Humidity	10%-- 90%
Storage Temperature	-20 ±50ºC
Atmosphere	86-106kpa

Detailed Photos
Company Profile
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of POS & POS Peripheral Products. We are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our factory have obtained ISO9001 certificates in 10 year, production department is over 3,000 SQM. Our products sell well in all cities and provinces around China, and also exported to clients over 100 foreign countries and regions. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Certifications
Packaging & Shipping
After Sales Service
FAQ FAQ
1.Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
2. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
3. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
4. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
5. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment
6.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
7. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 9 years. We can provide OEM / ODM customized service according to our customers' various application and demands.
8. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
