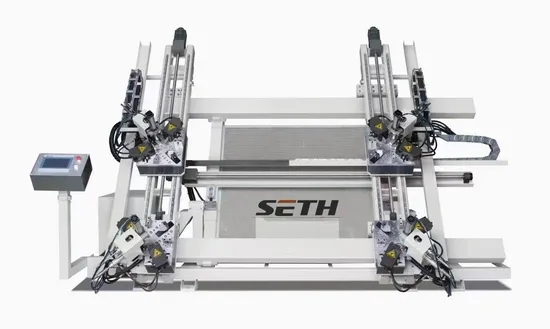

CNC Four Corner Welding Machine for UPVC Profile

Product Description

Jinan SETH Intelligent Equipment Co.Ltd.
Product Description
(1)The welding machine can realize 2mm weld welding process, and can weld both H-type sealing of the window frame.
(2) Adopt the brand set of CNC system and high quality electrical and pneumatic system, reliable performance unique head super rigid design, head feed using square guide rail movement pair, stable and reliable performance
(3)Unique know-how (know-how), improve the welding Angle strength and quality of products can quickly and easily replace the welding pad, High quality of doors and Windows products
(4) Optimized program design, high production efficiency Especially suitable for the production of high-grade plastic doors and Windows, the latest models of large production of doors and Windows enterprises, used to achieve automatic welding of high-grade plastic doors and Windows.
(5)positioning special plate for profiles that can be easily replaced can reasonably limit the overflow range of welding bumps, improve the welding Angle strength, and prepare the necessary conditions for obtaining good Angle cleaning effect
l(6) Vertical models with small footprint, improve production efficiency.

Working air pressure (MPa)	0.5-0.8Mpa
Input power	220V/380V
Input power (KW)	10.00KW
Height of welded profile (mm):	20MM-140MM
Width of welded profile (mm):120	120MM
WELD range	450x450 -800x2800mm
dimension(mm)	5000x2100x2500mm

Product Parameters
* The most advanced machine in China, for the welding of color profiles covered with film
* High precision circular guide linear motion pair, square guide linear motion pair; The overall casting mechanism and heavy frame structure of the clamp make the machine rigid. High precision parts processing, strict assembly quality control, good stability.
* Air cylinder, solenoid valve, PLC, low voltage electrical/gas components through strict screening, high reliability
* Equipped with fast conversion, rear plate pneumatic propulsion structure device, to achieve the conversion of right Angle and V welding mode, fast operation, practical.
* Rigid clamping structure is adopted in profile positioning mechanism to ensure welding flux strictly, and welding products have high dimensional accuracy.
* Heating to timing control, strictly in line with European welding specifications, high welding Angle, small fluctuation range.
* The machine adopts profile two-step pressing design, with emergency stop pressure relief function, in line with the European CE standard, high safety performance.
* This machine is especially suitable for multi-partition complex window type, and doors and Windows product quality requirements of high plastic window processing

Equipment Features:
1. The lower workbench is one-piece plate structure instead of the conventional five-row structure, and the lower pressure pliers are operated on the precision square rail.( The only manufacturer in China that uses a one-piece structure, by national patent)
2. Independent auxiliary compression can effectively prevent the material from running, which makes the diagonal melting more accurate.
3. Because the PVC plastic profile itself has some variability such as a deformation,angular instability,non-perpendicular,etc., this model is especially designed with a variety of profiles to design a simple and convenient combination type plate, which can nit only effectively assist the machine,but also ensure the weld flatness, angle and size of the doors and windows. And no need to customize the backup plate to achieve almost all the world's door and window profiles welding.
4. Each heads has a separate lubrication system to lubricate all the rail parts in the head.
5. The locking of the machine head is automatic locking, which is convenient and quick.

Main accessory
PLC	Delta Taiwan
Solenoid valve	STNC
Cylinder	PC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switch	Taiwan Delta
Linear bearing system	Linear (South Korean brand)

Standard accessory
Cutters	4pcs
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc

Remarks
1. All the electrical elements, Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
8. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of this machine for the person who come to our factory
3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 60USD/DAY Salary)
