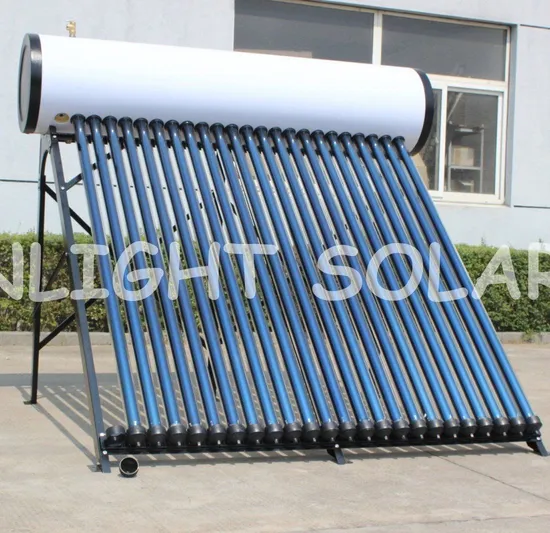

10-36tubes Color Steel Compact Heat Pipe Pressurized Solar Water Heater for Flat Roof

Product Description

Our Advantages Heat Pipe Pressurized Solar Water Heater
1. OEM available
2. Intelligent operation
3. energy saving , high efficiency
4. It works even freezing -36
Heat Pipe Pressurized Solar Water Heater
Features description:
1) Copper heat pipe tube and inner medium for thermal transmission, with a quick startup and super efficiency
2) No water flows into vacuum tubes, system works well with withdrawal of one or several heat pipe vacuum tubes
3) Super efficiency of insulation with polyurethane foam; No vent with less heat loss as compared to nonpressurized type
4) System withstands pressure more than 6 Bar, can be connected directly with tap water, more safe system and comfortable hot water use.
5) System can be equipped with auxiliary electric booster and intelligent controller for solar heating assistance and automatically system control
6) Simple structure, easy for assembly and installation on different structure
7) Can be used all year round even works well in extremely cold climate
8) Long lifespan, can be of good service more than 30 years
Product Parameters

Heat Pipe Vacuum Tube	Spec. (mm)	Φ 47× 1500 Φ 58× 1800
	Tube (pcs)	14 / 16 / 18 / 20 / 24 / 28 / 30 / 36
	Material	Borosilicate glass, red copper heat pipe tube, aluminum fin
	Coating	Three-target Cu/SS-ALN(H)/SS-ALN(L)/ALN coating
Water tank	Capacity	100 ~ 300L for inner tank
	Inner tank	Food-grade SUS304-2B stainless steel 1.2~1.5mm
	Insulation	High-density polyurethane integrated-foaming 50mm
	Tank shell	Stainless steel plate SUS304
Bracket	Spec. (mm)	1.2mm in thickness
	Material	Stainless steel plate (aluminum alloy bracket is available)
Accessories	Stainless bolt, Dustproof rubber seal, Plastic pipe holder
Optional device	Electrical heater, Intelligent controller, Anod magnesium bar, T& P valve
Working pressure	6 bar
Tilt angle	25° ~ 50°
Water output	45-95 o C
Hail resistance	Φ 25mm diameter

Product Description
Heat Pipe Vacuum Tube: Three-target galss tube, aluminum fin and heat pipe with its inner medium together makes an efficient solar collecting device for heat exchange, efficiency generated about 55% in summer and 42% in winter more than that of all-glass vacuum tube.
Inner water tank: Thickened food-grade SUS304-2B stainless steel as storage tank keeps the water clean and drinkable, advanced automatic argon-arc welding technics ensures a very long lifespan (more than 30 years)
Water tank shell: Stainless steel SUS304 as outer shell, much more durable and appealing with super mechanical performance, and survives several decades to ocean coast envirionment.
Insulation Layer: High-density polyurethane integrated foam-forming with twice slaking treatment
Supporting Bracket: Stainless steel or aluminum alloy plate, super weight bearing and wind resistance design (140 km/hr), super mechanical performance and corrosion resistance ensures a long life to acid rain. Easy installation, universal bracket suitable for either flat and slope roof installation
Accessories: Safety valve and relief valve, Stainless bolts & nuts, anti-aging dustproof rubber seal, plastic pipe holder to ensure their lives as long as other parts of the system
Optional Devices:
Electrical heater, as an auxiliary heating element in case of raining or cloudy days so as to ensure a continous hot water supply
Intelligent controller, automatically controls startup and ceasing of auxiliary heating device with temperature sensor, more intelligent operation
Anod magnesium bar: Soften hard water in system so as to protect the storage tank from water scale
Warranty:
3 years international responsibility for integrated system exchange and 15 years for vacuum tube compensation due to original quality problems
Detailed Photos
