PVC Extruder Manufacturer PVC Flex Banner Production Line

Product Description

pvc rigid untransparent sheet making machine This pvc sheet making machine is designed to produce rigid pvc unstranparent sheet, which is featured with good plastification, high tension, products color controlling, high production capacity and can be replaced pvc casting sheets.

THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic spring feeding machine		1 set
2	Conical twin screw extruder		1 set
3	T-type /hanger type die head (JC-Times brand)		1 set
4	Three Roller Calendars (alloy steel material )		1 set
5	Rollers thermoforming machine		1 set
6	Cooling frame and edge cutting unit		1 set
7	Haul off machine		1 set
8	Plastic cutting machine-Guillotine		1 set
9	Twin position winder		1 set
10	Spare parts		1 set
ACCESSORY MACHINE PARTS (OPTIONAL)
11	High speed hot and cold mixer		1 set
12	Plastic crusher		1 set
13	Plastic pulverizer		1 set
14	Air compressor		1 set
15	Industrial water chiller		1 set
SHEET SPECIFICATIONS
1	Sheet width	500-1500mm
2	Sheet thickness	0.5-2mm
3	Type	Rigid pvc, untransparent
SHEET APPLICATIONS
1	Sandwich panel, furniture edge band, thermoforming packing
PAYMENT, DELIVERY AND AFTER SALE SERVICES
1	Payment terms	40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time	60 days after receipt of prepayment
3	Packing method	Wooden cases/pallets with stretching films
4	Guaranteed time	18 months for mechanical parts, 12 months for electrical parts
5	After sale service	Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable

SHEET SPECIFCATIONS: thickness: 0.3-1.5mm, width: 1500mm

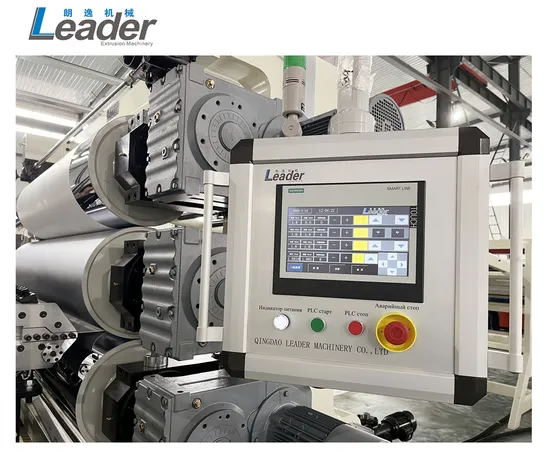

Pictures
COMPANY CERTIFICATIONS OF:
COMPANY CERTIFICATIONS OF:
OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION 1. PC/PP hollow profile sheet/hollow grid sheet extrusion line Processing material: PC/PP virgin material plus recycle material Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm Net sheet width: 1220mm-2100mm Layer structure: Single layer or multi-layer Capacity: 200-600kg/h Application: Ads. Decoration, roofing, packaging, printing, etc. 2. ABS/HIPS sheet extrusion machine: Processing material: ABS/HIPS virgin pellets plus recycle material Thickness range: 1-6mm Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement) Layer Structure: Single layer or multi-layer Capacity: 400-800kg/h Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc. 3. ABS/PMMA sheet extrusion machine: Processing material: ABS/PMMA virgin pellets plus recycle material Thickness range: 1-8mm Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement) Layer structure: Single layer or multi-layer Capacity: 400-800kg/h Application: Vacuum forming, bathtub, etc. 4. PP PE foam board/sheet extrusion line Processing material: PP, PE , Foam additives, master batch Thickness range:0.8-3-12mm Net sheet width: 600mm-1260mm- Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C) Capacity: 150-500kg/h Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc. 5. PE HDPE sheet extrusion machine: Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material Thickness range: 1-2.5mm, 3-35mm Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm Layer structure: Single layer or multi-layer Capacity: 200kg/h-1200kg/h Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc. 6. PC/GPPS/PMMA sheet extrusion machine: Processing material: PC/GPPS/PMMA virgin pellets plus recycle material Thickness range: 1-12mm Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement) Layer Structure: Single layer or multi-layer Capacity: 400-600kg/h Application: Ads., decoration, roofing, etc. 7. PP/PS sheet extrusion machine: Processing material: PP/PS virgin pellets plus recycle material; Thickness range: 0.15-2mm Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement) Layer structure: Single layer or multi-layer Capacity: 200kg/h-1000kg/h Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc. 8. PET sheet extrusion machine: Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes Thicknes range: 0.2-1.5mm Net sheet width: 650mm-1500mm(or as per cusotmer's requirement) Layer structure: Signle layer or multi-layer Capacity: 150-500kg/h Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc. 9. PVC sheet/edge banding sheet/marble sheet machine: Processing material: PVC power plus other additive Thickness range: 0.15-1mm; 1-3mm; 3-12mm Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements) Layer structure: Single layer or multi-layer Capacity: 200kg/h-500kg/h Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc. 10. EVA car interior decoration sheet extrusion line Processing material: EVA and other additives Thickness range: 1-8mm Width range: 1000-1800mm Layer strcuture: single layer Capacity: 500-800kg/h Application: automotive sealing strips, sound insulation cushion, sound absorption sheets, automobile tail box, fenders, car interior and exterior decoration parts etc. 11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine Processing material: PVC, PMMA and other additives Thickness range: 1-8mm Width range: 720mm, 880mm, 1040mm Layer structure: A/B, A/B/A, A/B/C Capacity: 400kg/h Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
