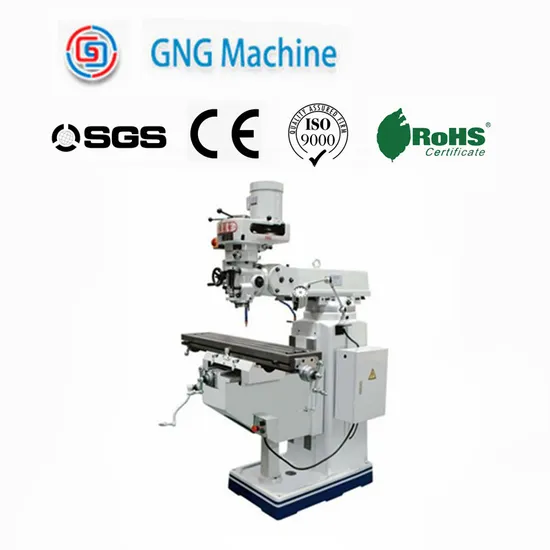

Electric Heavy Duty Universal Milling Machine

Product Description

Min. Order Quantity: 1 Set/Sets
Port: Qingdao
Payment Terms: L/C, T/T
Quick Details
Condition: New
CNC or Not: Normal
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: : X6325D
Voltage: 380V
Power(W): 3750W
Dimension(L*W*H): 1516X1550X2080mm
Weight: 1820kgs
Certification: CE
Warranty: 12months
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Universal milling machine X6325D
Table size: 254X1270(9"X42")
Long travel: 850mm
Cross travel: 380mm
Vertical travel: 400mm
T-slot number and size: 3X16
RAM travel: 470mm
Distance from spindle nose to table surface: 0-400mm
Spindle hole taper: STANDARD ISO40
Spindle travel: 127mm
Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
Optional variable - 60-4200
Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
Spindle motor: 2250W
Head swivel 90°
Head tilting 45°
Packing size: 1516X1550X2080mm
Gross weight 1490kgs
Standard accessories:
1. Drwa bar
2. Tools box and tools
3. Working lamp
4. Electric cabinet
5. Manual oil pump
6. Spindle NT40
Optional accessories:
1. X axis APF750 power feed
2. Y axis APF750 power feed
3. Coolant system
4. Plastic splash guideway sliding guards
5. Oil collecting plate
6. Variable speed head
7. X/Y axes SINO digital readout
8. X/Y/Z axes SINO digital readout
9.58PCS clamping kits
10.8PCS NT40 collect chuck
11.15PCS NT40 collect chuck
12. Spinde guard
