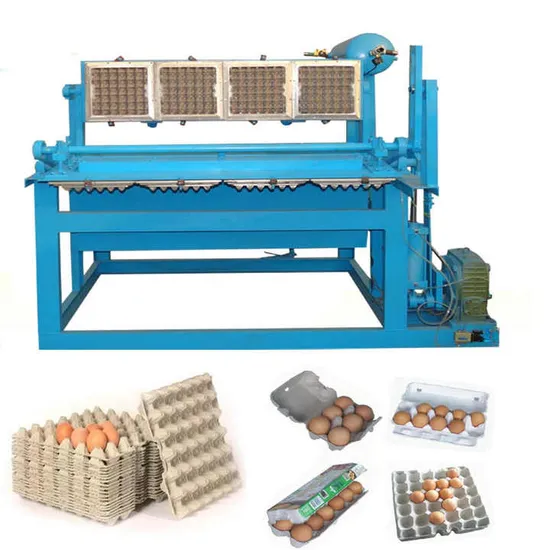

Waste Paper Pulp Molding Machine Egg Tray Machine with Factory Price

Product Description

Product description:

The automatic egg tray production line is composed of beating system, forming system, drying system, stacking system, vacuum system, high pressure water system and air pressure system. Specializing in the production of 10, 12, 15, 18 egg carton products. The line can produce between 800 and 6,500 egg trays per hour. It uses waste paper as raw material to make affordable and portable egg trays.
We have egg tray machines in different sizes for sale and have been successfully installed in many countries such as India, Philippines, Indonesia, Spain, Colombia, Nigeria, Botswana, Mozambique, Zambia, etc. Whether you want a stand-alone machine or a complete egg tray line.
1) Simple type for producing smoothly and easy in installation and maintation.
2) Adopting advanced world famous brand components in electric parts and operation parts, quality is reliable.
3) the main character of our egg tray production line is power and energy saving, which will give you a high profit return
4) Running in a high automatization and intellectualization,no pollution, and water is recycled.
Details photo: working principle:

Pulp system
1.This section aims to make quality pulp from waste paper. Firstly, it mixes 1 waste paper into 3 water to make paper pulp with a pulper. Then there is a pulp refiner to make the pulp more evenly. Also, you can add some additives. Then the pulp is prepared.
2. Pulp Molding Section
In this section, the pulp will be molded into trays. Beston uses a rotary pulp molding machine, which is automatic to operate. When the forming molds rotate to transfer mold, the trays are formed and then they will be demolded for drying. Forming system
3: The pulp pump pumps the prepared pulp from the pulp supply tank into the egg tray forming machine, and then the top mold is completely immersed in the pulp. Under the suction effect of the vacuum on the back of the mold, the pulp is adsorbed on the surface of the mold At the same time, the water in the pulp is extracted to form a wet egg plate on the surface of the mold
4: When the forming machine is working, the water in the pulp is pumped out by the vacuum pump, and then the waste water is discharged into the waste water tank. You can pump the waste water to the hydropulper and mixing tank for recycling.
Drying system
This section aims to dry the wet trays. You can choose to dry naturally if you have a small-scale egg tray plant (less than 2000 piece/h). Or you can have a brick or metal drying line, which can dry the trays in 20 minutes.
Step 5: Put the wet egg tray into the drying line to dry, and finally trim and pack the egg tray.
In places with abundant sunshine, people will also use natural sun drying for small egg tray machines with a small output of 1000-1500 pieces per hour. The investment cost will be very low. Product paremeters:

Model		BY0301	BY0401	BY0403	BY0404	BY0408	BY0508	BY0608
Capacity (pieces/h)		800-1000	1200-1500	2000	2200-2500	3500-4500	5000-5500	6000-6500
Forming Mould Quantity		3	4	12	16	32	40	48
Total Power (kw)		33	42	53.7	82	127	161	223
Electricity Consumption (kw/h)		23.1	29.4	37.59	57.4	89	113	156
Labor Force		3-5	4-6	4-6	4-6	4-6	5-7	6-8
Material Consumption (kg/h)	Paper	85	102	170	212	298	425	520
	Water	255	306	510	636	1147	1275	1560
Fuel Consumption	Coal (kg)	50	60	83	104	125	208	208
	Natural Gas (m3)	22-32	26-36	37-47	46-56	56-66	92-103	92-103

Shipping& Installation& Production
Company profile:
xuye Machinery is a comprehensive enterprise that comprises R& D, test, manufacture, sales and service functions. We have succeeded in researching and supplying solutions with the following equipment: Drying equipment, building materials equipment, agriculture equipment and other products.
With our leading-edge technologies, advanced processing equipment and our corporate spirit of "innovation, pragmatism, unity, hard work and dedication", our company has the strength to meet the challenges from all aspects. We have the confidence to build "Baoyuan" into a world-renowned brand, provide quality services for the dryer and building processing industry, and achieve a win-win situation between the company and customers.
FAQ:
A:Are you a manufacturer or trader? we are a manufacture special on pulp moulding mould with many years experience. B:What is your production cycle? Usually the delivery time is about 7 - 15days after the payment confirmed. It is also depend on the machines. If need to customize the machine as your requirement, the producing time is longer. C:What kinds of mould do you produce? We produce all kinds of pulping mold, such as egg tray molds,egg box molds,fruit tray molds,coffee cup tray molds,wine tray molds, industrial package mold etc. D:How should I choose the model? 1. You could tell us your request for select our existing model or newly designed mould. Just 30 holes egg tray pulp mould, we have more than 100 types. 2. Or you can send us pulping products (such as egg tray/egg box) ,we can design the mould. E:The guarantee All the equipment ordered from us will provide one year guarantee from the delivery date. If there is any wearing part that is broken within the warranty period and it isn't caused by improperly operation,then we would offer the new parts for free. F:How to install the mold? We have professional technician guidance to assist you with installation. G: What is your payment term? After confirming the PI, you need pay 30% T/T deposit to start production, 70% balance before shipment.
