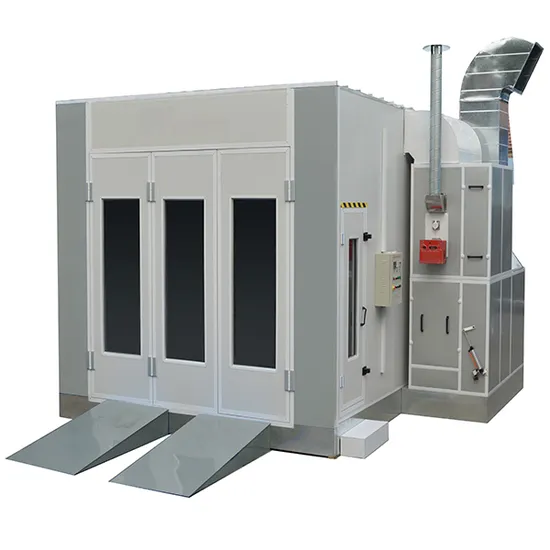

Ce Factory Price Down Draft/ Side Draft Car Spray Painting Booth
| US$5,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AC-6900
Lighting System
LED
Usage
Car Painting and Baking
Transport Package
Standard Exporting Package
Specification
6, 900 *3, 900*2, 750mm
Trademark
AUTOCARE
Origin
China
HS Code
8419899090
Production Capacity
3000 Sets/Year
Packaging & Delivery
Package Size
114.00cm * 70.00cm * 90.00cm
Package Gross Weight
147.000kg
Product Description
What is the Details of our Spray Booth?
| Detailed Parameters | ||||
| Total Power | 14.5kw | |||
| Booth Outside | 7050*5200*3600 Length*Width*Height (mm) | |||
| Booth Inside | 6900*3900*2750 Length*Width*Height (mm) | |||
| Door Dimension | 3 folds main door,3,000×2,700mm(W×H),Equipped with Handle & Lock one personal door,800×2,000mm(W×H),Equipped with Handle & Lock | |||
| Walls Panel | 75mm thick,EPS panel, covered by 0.426mm color steel. Tongue and groove interlock structure | |||
| Basement System | Grid Plates (Galvanized)* 2rows Diamond Plates (Powder Coated or Galvanized)* 3rows 2 ramps,each size 800x2,000mm(WxL) | |||
| Heating System | Diesel Burner*1unit (Italy RIELLO, G20) stainless Heating Exchanger*1unit Heating Cabinet*1unit,rock-wool insulation | |||
| Filter System | Primary Filter* 1set, G3 Grade(EU-3) Air-Intake Filter* 1set,F5 Grade(EU-5) Air-Exhaust Filter*G3 Grade(EU-3) | |||
| Air System | Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each Air-Exhaust Fan* 1unit, Centrifugal Fans with 5.5 KW motor Cabinet for the fans* 1unit, Air Ducts and Belimo NMU230 20NM electric damper | |||
| Illumination | Ceiling Lights * 32pcs, 20w LED lamp, Side Lights * 32pcs,20w LED lamp with Light Fixtures, anti-explosion design,Illumination ≥800LUX | |||
| Control System | *1unit,Button type control box, with safety protection button | |||
Product Pictures Case Show
Why Choose Us
Autocare spray booths come in a variety of sizes that are custom to your needs. Our experienced industrial designers and engineers are constantly innovating the way we see the spraying industry every day. We always challenge ourselves through innovation to be the leaders in this fast growing industry. Our primary objective when creating quality auto spray booths and equipment is to provide the operator ease of operation and efficiency. Our design and production will help expedite the overall process, saving a large amount of time and money.
Certificate
Contact Us
Ice Wu
Welcome your enquiry!
