CNC Spark Erosion Machine Mirror Roughness G40 EDM Machine

CNC Spark Erosion Machine Mirror Roughness G40 EDM Machine

US$25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
G40
Application
Metal
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.4um
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Finishing Ra
0.08um Mirror Garde
Transport Package
Plywood
Specification
G35
Trademark
HANQI EDM
Origin
China
HS Code
8456301090
Production Capacity
200sets

Product Description

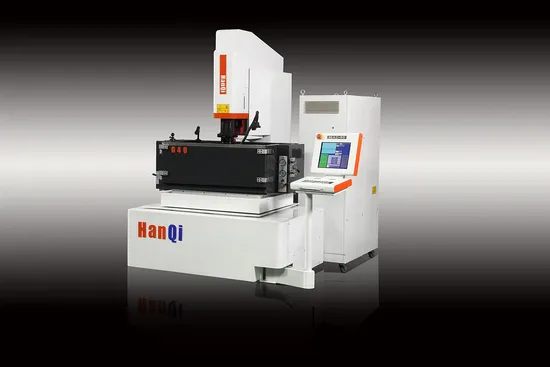

Mirror Grade CNC Die EDM Sinker Machine G40 G series CNC die sinking EDM machine can reach very high speeding but keep good roughness. It is whole design, very friendly controller. It will be very conveniently to control the sinker EDM machine. The machine adopt famous parts like Panasonic servo motor, HIWIN linear guideway, HIWIN ball screw, Schneider electrical to make sure quality. The system with a lot advanced technology for example automatic process function, automatic positioning function, automatic clean arc and short circuit. It includes tool raise high-speed adaptive system, discharge pulse detection system and energy pulse control system to short machining time and get best precision

"T" sharp machine bed, "+" cross worktable structure, high rigidity casting, Hiwin liner guideway, famous parts
This is the base condition for G series CNC die sinking EDM machine.
Material: steel / steel, fine steel/steel, graphite / steel, copper thin copper tungsten / steel, copper and tungsten / carbide copper / aluminum,Graphite / heat-resistant alloys, graphite / titanium, creating a processing copper / steel
1. High Performance
2. Roughness of Ra≤0.08um
3. Electrode Consumption 0.01%
4. CNC Mirror Sinker EDM
5. Economic
6. Efficiency≥500mm3 / min
CNC Die EDM Sinker G40 Specification
Item Unit G30 G35 G40 G50
Machine Size mm 2100*2300*2300 2200*2400*2300 2300*2500*2300 2700*2600*2500
Machine Weight kg 2000 2200 2300 3500
Machine Power kw 9 9 9 9
Working area
Worktable Size mm 600*400 600*400 700*400 800*500
Loading kg 400 400 500 800
Machining area Size mm 950*620*360 990*640*450 1280*700*550 1200*840*534
Distance from electrode
chuck to worktable
mm 565 600 600 720
X,Y,Y Travel mm 300*210*270 350*250*270 400*300*270 500*400*352
Power
Max Current A 50 50 50 50
Max electrode weight kg 25 100 50 100
Max speed mm²min ≥500 ≥500 ≥500 ≥500
Drive type Digital AC servo Digital AC servo Digital AC servo Digital AC servo
Min electrode wear rate 0.01% 0.01% 0.01% 0.01%
Roughness um Ra≤0.08 Ra≤0.08 Ra≤0.08 Ra≤0.08
Min drive unit um 1 1 1 1
Coordinate Quantity 60 60 60 60
System
Input Touch screen, USB
Display 15-inch LCD screen (TFT-LCD), CRT
Each Axis Compensation Steps error compensation, backlash compensation for each axis separately
Each axis Resolution 0.4
Technology Standards steel / steel, fine steel/steel, graphite / steel, copper thin copper tungsten / steel,
copper and tungsten / carbide copper / aluminum,
Graphite / heat-resistant alloys, graphite / titanium,
creating a processing copper / steel
Interpolation Method lines, arcs, spirals, etc
Processing Discharge
Conditions
Registration function 1000 conditions (C000-C999)
Input Range + 9999.999 ~ -9999.999
Offset Function Set 1000pcs offset H000-H999

CNC Die EDM Sinker Part List
No. Parts Brands Orginal
1 linear guideway Hiwin Taiwan
2 Ball screw Hiwin
3 X,Y,Z motor Panasonic AC servo motor and driver.Power 400W/2500 Japan
4 Main board AAEON,Industrial garde Taiwan
5 Capacitance Kingbox Japan
6 Circuit breaker Schneider France
7 LCD BOE,Industrial garde China
8 Power Sup MeadWell,Industial garde Taiwan
9 Contactor T-Verter,Industrial garde Taiwan
10 Air switch and limit switch Omron Japan
11 Communications wire and cable Hitachi Japan
12 Connector Nanshi China
13 IC chip NXP / ATMEL / ALTERA
14 Diodes, transistors Vishay American
15 Three rectifier bridge SANTEX Japan
Emergency stop IDEC Japan
16 Intermediate relay Japan
17 Opto coupler Toshiba Japan
18 Volt-Ammeter YOKOWAGA Japan
