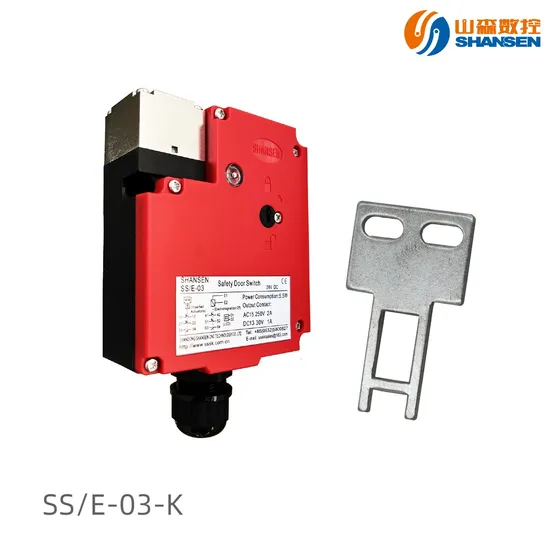

(SS/E-03-K) Metal Switch Head for 4-Way Adjustment - Square Safety Door Switch

Product Description

Metal switch head for 4-way adjustment
Spring force for unlocking by solenoid coil excitation
Assisted unlocking mechanism as standard

Locking method: Energized Unlocking
Independent circuits of indicator lights can respond to a variety of uses
Built-in 6 groups of contacts, can complete a variety of wiring methods


Model Description
Product Parameters
Contact capacity:

Rated voltage			30V	250V
Rated current	AC	Resistive load (AC-12)	---	4A
		Inductive load (AC-15)	---	2A
	DC	Resistive load (DC-12)	2A	0.8A
		Inductive loads (DC-13)	1A	0.4A

Solenoid Coil:

Rated voltage	DC24V	+10% -15%
Rated current	0.4A
Insulation class	Level B

Performance Specifications

Production standard	t/sdmtgm0007-2020
Operating environment	Better than pollution level 3
Ambient temperature	-5~40ºC
Relative humidity	45~80%
Protection class	IP67 (without induction port)
Mechanical service life	Not less than 1 million times
Electrical service life	Not less than 100,000 cycles (AC-12 250V 4A)
	Not less than 1 million times (24V AC/DC 100mA)
Tensile strength	2700N
