High-Efficiency PE/PP Film Plastic Granulator with Fly Wheel

Product Description

High Speed Granulator/Plastic Crusher/Tire Recycling Machine
Product Description

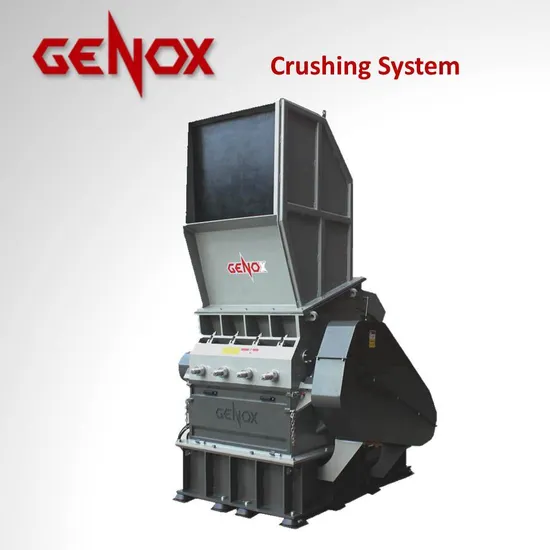

GXC granulators/crusher were designed especially for defined size reduction of various materials in a single pass. Rotor and counter knives are made from high quality steel. The material is cleanly sheared off between rotor knives and counter knives, a defined granulate is formed by the desired screen mounted below the rotor. The highly effcifent granulator principle works with very small cutting gap.
Standard Features
· Strong welded construction from heavy gauge steel plate
· Inclined, split cutting chamber design
· Oversized, outboard spherical rotor bearings prevents bearing damage due to product migration
· Precision machined rotors (Forward set V-Rotor as standard)
· Manual, electric and hydraulic chamber opening mechanisms - quick access to the cutting chamber for maintenance and machine clean downs
· Replaceable wear plates at either end of the rotor shaft
· Stand Alone Electrical Control Panel - using quality Schneider (Telemecanique) components and Siemens PLC's
· Tested, Approved and Certified to the applicable CE safety standards
GXC Series Rotor Configurations
As standard, GXC series machines are supplied with our open V-Rotor as standard which is suitable for most types of material. The double shear, V configuration of the forward set blades creates a highly efficient double scissor cut, and encourages material to the centre of the cutting chamber. This results in reduces power consumption, even blade wear, reduced wear on the chamber sidewalls and optimum throughput. The open design of the rotor lets material expand and move around and allows good airflow through the machine. This minimizes heat build up and production of fines. Granulators can be supplied with 3, 5, 7 or 9 rows of rotor blades depending on the model. A rear set V-rotor design (known as the VS-Rotor) is also available for certain, lighter duty applications.
The C-Rotor is a heavy duty, high inertia, semi-closed design intended for demanding applications. The larger quantity of individual blades are held by strong supporting segments and can be replaced piece by piece if required. This design creates a cascade cutting effect which is well suited for processing hard or thick materials and is also a popular choice when granulating profiles. The C-rotor is available with 3, 5 or 7 staggered rows of blades depending on the model.

Model	GXC1200	GXC1000T	GXC1200T	GXC1600T	GXC2000G
Dimension (L/W/H) (mm)	2120×2320×3700	2410×2100×4250	2410×2320×4250	2410×2720×4250	2750×3470×4630
Hopper inlet (mm)	1200×1000	1000×1130	1200×1130	1600×1130	2000×1100
Rotation diameter (mm)	Ø520	Ø660	Ø660	Ø660	Ø800
Rotor operation length (mm)	1200	1000	1200	1600	2000
Rotation speed (rpm)	520	520	520	520	520
Screen (mm)	Φ12	Φ12	Φ12	Φ12	Φ12
Rotor knives (PCS)	5×2	5x2	5×2	5×4	7x4
Counter knives (PCS)	2×2	2x1	2×2	2×2	2x2
Drive power (Kw)	75~90	75~110	90~132	110~160	250~315
Hydraulic power (Kw)	1.5	2.25	2.25	2.25	2.25
Weight (Kg)	Approx 5500	Approx 5800	Approx 7400	Approx 10000	Approx 16000

Detailed Photos

Company Profile
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
