Colo-1864 Electrostatic Powder Coating Cure Industrial Oven for Wheel Rim

Product Description

Product Description

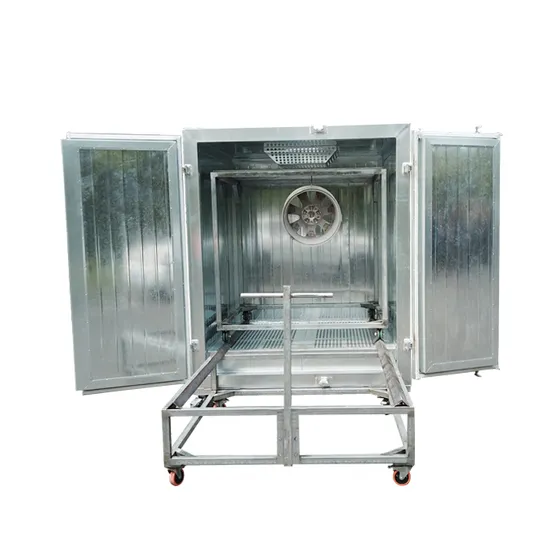

Colo-1864 Electrostatic Powder Coating Cure Industrial Oven for Wheel Rim
COLO-1864 Electrostatic Painting Oven with PLC Control suitable for curing small or medium workpieces ,for maunal and small productions .Our Colo brand powder coating oven features up for uniform heating temperature by the good design air flow system.Less cost energy.These type is widely use for many parts.
1.Structure: One side door open,design with trolley and racking system,conveient for parts transportation,trolley can be desing as required.
2.Material: All our powder coating ovens feature premium 100mm thick insulated wall and roof panels,excellent for keeping temperatures.
3. PLC Control panel :With temperature alarm ,could set baking time and tempreture ,when baking time arrive ,stop automaticly.
4.Our energy-efficient designs save fuel and get to temperature quickly.
Specifications
Colo-1864 Electrostatic Powder Coating Oven Specifications

Model	Colo-1864
Worksize dimensions	1600width x 1800 height x 1400 depth
Overall dimensions	1900 width x 2200 height x 1700 depth
Power supply	Electric/ 12kw
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature max.	250° C
Ventilation performance	805-1677m3/h
Motor power	0.75kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley
Warranty	12 months

Detail Features

Colo-1864 Electrostatic Powder Coating OvenFeatures
Circulation Fan Burning room is built at the back of heating room with a top fan, which features compact and space-saving.
PLC Controller PLC panel allows to set the required temperature and heating time accurately, and includes fan starting, alarm lights and emergency stop buttons.
PLC Controller PLC panel allows to set the required temperature and heating time accurately, and includes fan starting, alarm lights and emergency stop buttons.
Application
Customers Reviews
Company Profile

COLO are the leaders in manufacturing of Powder Coating Ovens,we export powder coating oven over 9 year,full of experience and technology.The technical specifications, design, manufacturing, installation and commissioning process is offered as a complete package. Our Powder Coating Ovens are preferably suitable for a wide range of powder coating and are available in many different sizes, types and temperature ranges.
All ovens are constructed from high quality components using our unique modular construction method.We have batch box type oven had wide range and readily available. Medium and big size industrial oven are built in Modular cassette and expandable construction. A unique feature of these oven are the World class Rockwool insulation for minimum heat loss.
