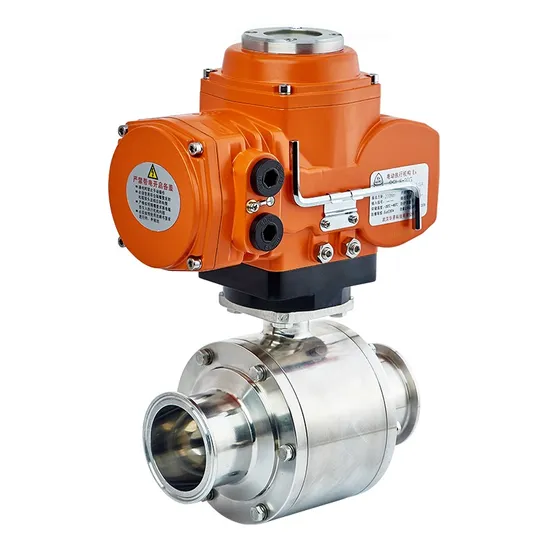

Wai Hang SMS/ISO/CE/DIN/3A SS304/316L Sanitary Electric Forged Straight Through Quick Clamp Ball Valve for Biomedicine/Food/Fine Chemicals Industries

Product Description

Wai Hang Sanitary Electric Forged Straight Through Quick Clamp Ball Valve Electric forged straight through quick clamp ball valve is a kind of forging manufacturing of straight-through fast snap ball valve, with electric control and quick installation characteristics of forging body and valve interior has higher strength and corrosion resistance, can withstand higher pressure and temperature, suitable for a variety of harsh industrial environment at the same time, straight-through design makes the medium flow in the valve more smoothly, The retention and resistance of the medium in the valve are reduced, and the flow capacity and service life of the valve are improved.
Electric control makes the valve can be remotely controlled and automated operation, convenient for the user's operation and maintenance in the chemical, petroleum, pharmaceutical and other fields, electric forgings through the quick ball valve is widely used in a variety of pipeline systems, as a device to control and regulate the flow of media, with efficient, stable, safe and reliable advantages.
Compared with castings, forged valves have more uniform body organization, better density, better strength integrity, better dimensional characteristics, and smaller dimensional errors. The mechanical properties of forgings are better than castings, and they can withstand large impact forces and other heavy loads, so all important parts with large forces are forgings.
There are various standard valve series can be supplied, they are the DIN,3A, SMS , ISO/IDF , BS/RJT , ASME/BPE standard etc. ou can choose us with confidence, our products meet the standards of multiple regions, such as American Standards, Japanese Industrial Standard, Korean Standard, German Standard and Italian Standard. The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal. The specification of ball valve series are welded ball valve, clamped ball valve, threaded ball valve etc.
Design and features: Name: Electric forged straight through quick clamp ball valve Size: DN10-DN100 or 1/2" - 4"
Valve body material: Stainless steel 304/304L, stainless steel 316/316L Ends: Flanges, welded, quick clamp, union, threads ( internal/external thread)
Operate mode: Manual/handle, pneumatic, electric Max. Work Pressure: 10 bar Max. Working Temperature: 150ºC Material of Seal: PTFE, SI, FEP, PFA, EPDM, NBR, FDA177.2600 Medium: Beer, dairy, beverage, pharmacy, cosmetics, fruit juice, liquor, red wine, chemical, chemical reagent, daily chemical, medicine, injection, botany, organic raw material, fermentation, adhesive, perfume, essential oil


Electric forged straight through quick clamp ball valve is a kind of forging manufacturing of straight-through fast snap ball valve, with electric control and quick installation characteristics of forging body and valve interior has higher strength and corrosion resistance, can withstand higher pressure and temperature, suitable for a variety of harsh industrial environment at the same time, straight-through design makes the medium flow in the valve more smoothly, The retention and resistance of the medium in the valve are reduced, and the flow capacity and service life of the valve are improved.
Electric control makes the valve can be remotely controlled and automated operation, convenient for the user's operation and maintenance in the chemical, petroleum, pharmaceutical and other fields, electric forgings through the quick ball valve is widely used in a variety of pipeline systems, as a device to control and regulate the flow of media, with efficient, stable, safe and reliable advantages.
Compared with castings, forged valves have more uniform body organization, better density, better strength integrity, better dimensional characteristics, and smaller dimensional errors. The mechanical properties of forgings are better than castings, and they can withstand large impact forces and other heavy loads, so all important parts with large forces are forgings.
The series ball valves are used for material transfer and control. This type of valve is extensively used in food, beverage processing and pharmacy, chemical industry.
