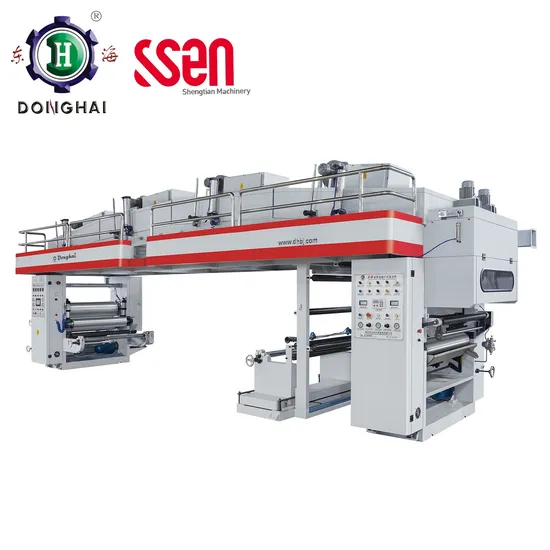

Donghai GF-K Model Solvent Based Waterbased Dry Laminating Machine Solventbased Coating Lamination Machine for Flexible Packing Packaging Bags Speed 150mpm
| US$1,000.00-55,555.00 | 1 set (MOQ) |
Basic Info.
Model NO.
GF-K
Classification
Solventbased Lamination Machine
Application
Packaging Paper, Film Material
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
All Kinds of Plastic Films, Paper etc
Plastic Film Mulching Modes
Two-Layers Lamination Composite
Performance
Food Packaging
Max.Material Width
600mm/800mm/1100mm/1200mm/1300mm
Driven Motors
3PCS
Webguide
Photoelectric Eyes+Ultrasonic
Coating Method
by Anilox Roller
Tension Control
Siemens PLC
Transport Package
Iron Bracket+Film Wrapping
Specification
9500*2600*3200mm
Trademark
DONGHAI
Origin
China Mainland
HS Code
84778000
Production Capacity
200sets/Year
Product Description
Machine basic parameters| Model Parameter | GF-600K | GF-800K | GF-1000K | GF-1100K | GF-1200K | GF-1300K |
| Max.material width | 600mm | 800mm | 1000mm | 1100mm | 1200mm | 1300mm |
| Max.unwind diameter | φ650mm | φ650mm | φ650mm | φ650mm | φ650mm | φ650mm |
| Max.rewind diameter | φ650mm | φ650mm | φ650mm | φ650mm | φ650mm | φ650mm |
| Max.working speed | 150m/min | 150m/min | 150m/min | 150m/min | 150m/min | 150m/min |
| Oven length | 8M | 8M | 8M | 8M | 8M | 8M |
| Total power | 70kw | 70kw | 78kw+15kw (auxiliary heater) | 78kw+15kw (auxiliary heater) | 78kw+15kw (auxiliary heater) | 83kw+15kw (auxiliary heater) |
| G.Weight | 6000 kgs | 6500 kgs | 7500 kgs | 8000 kgs | 8500 kgs | 9500 kgs |
| Dimension(L*W*H) (3600mm high when oven open) | 9500*2200*3200 | 9500*2400*3200 | 9500*2600*3200 | 9500*2700*3200 | 9500*2800*3200 | 9500*2900*3200 |
Company Profile
After Sales Service
As the ultimate manufacturing factory, we not only provide you competitive factory price, visible capital goods,but also more invisible values including:
1) In-time delivery
2) One year quality guarantee and overseas technical service
3) Competitive factory price without any third party involved
4) Tailored solutions for specific demand and requirements provided
5) Quick delivery for spare parts
6) Fast response to customer's confusions
7) Keep customers updated with the production steps
8) Strict quality control during production and do inspection before delivery
9) Instant remote technical consultation and operation guidance
10) Shipping following up until goods arrives at destination safely
