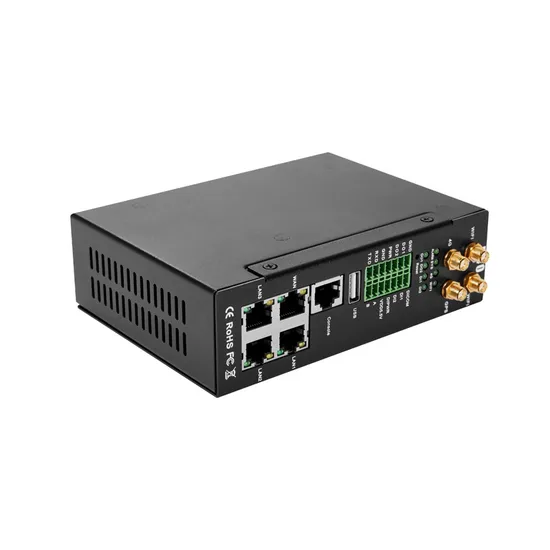

High-Speed VPN Capable R40A Edge Router with RS485 2DI 2DO for Remote Connections
| US$174.54 | 1 Piece (MOQ) |
Basic Info.
Model NO.
R40A
Firewall
Firewall
Ports
≤4
Port Structure
Not Modular
Power Supply
9~57VDC
WAN
1 Channel RJ45
LAN
3 Channel RJ45
Serial Port
1 RS485, 1 RS232
Modbus Mode
Modbus Master, Modbus Slave
WiFi
2 Antenna
SIM Slot
2
Remote Management
Remote Configuration, Remote upgrade
Data transmission
Tranparent transmission support
Protocol
Modbus, MQTT
Alarm
SMS Alert, Email Alert
Edge computing
Timer, Logic control
Cloud
AWS, ThingsBoard
Application1
Wireless workstation network access
Application2
Mine Monitoring
Transport Package
Box
Specification
145x110x45mm
Trademark
BLIIoT
Origin
China
HS Code
8517623600
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
47.00cm * 31.00cm * 31.00cm
Package Gross Weight
1.500kg
Product Description
Product DescriptionThe R40A industrial router communicate via 4G and WiFi, it comes with Digital input, Digital output, Analog input, Ethernet ports, Serial ports, which can perform as Modbus master to collect data from sensors and detectors and upload the data to cloud platform for remote monitoring and event alarms. The IoT router integrates the functions of IoT gateway, RTU and industrial router, users only need one IoT router to meet the needs of data acquisition, remote control, event alarm and remote monitoring. It is an ideal solution for smart cities. The M2M cellular routers support monitoring the online status of network devices connected to the LAN port, which can be reported to the platform through MODBUS or MQTT. Product Parameters| Item | Parameters | Description |
| Power Supply | Input voltage | 9~57VDC |
| Input current | Normal: 240mA@12V, max: 800mA@12V | |
| Connection | 5.08mm terminals | |
| Protection | Anti-reverse connection Protection | |
| WAN | Qty | 1 |
| Interface Spec | RJ45,10/100Mbps, Automatically adapted to MDI/MDIX | |
| Protection | ESD ±30kV(contact), ±30kV(air) EFT 40A(5/50ns) Lightning strike 24A(8/20µs) | |
| LAN(POE) | Qty | 3 |
| Interface Spec | RJ45,10/100Mbps, Automatically adapted to MDI/MDIX | |
| POE(optional) | Supports 3 POE power output compatible IEEE802.3at/af Single POE maximum output power 30W With power management function Voltage range 48~57V | |
| Protection | ESD ±30kV(contact), ±30kV(air) EFT 40A(5/50ns) Lightning strike 24A(8/20µs) | |
| Serial Port | Qty | 2 |
| Type | 1 RS485, 1 RS232 | |
| Baud rate | 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400 | |
| Data Bit | 5, 6, 7, 8 | |
| Parity Bit | None, Even, Odd | |
| Stop Bit | 1, 2 | |
| Working mode | Data transparent transmit, Modbus RTU to TCP, Modbus master, Modbus slave | |
| Protection | ESD(contact): 8KV Surge: 4KV(8/20us) ESD ±8kV(contact), ±15kV(air) EFT 4KV, 40A(5/50ns) | |
| Console | Qty | 1 |
| Type | CONSOLE | |
| Interface Spec | RJ45 | |
| Protection | ESD:±8kV(contact), ±15kV(air) | |
| USB (Reserved) | Qty | 1 |
| Type | USB2.0(HOST) | |
| Protection | ESD ±8kV(contact), ±15kV(air) | |
| WIFI | Antenna qty | 2 |
| Antenna type | SMA | |
| Protocol | 802.11a/b/g/n (mixed) | |
| Mode | AP mode, client mode | |
| Frequency | 2.4G | |
| Channel | Channel 1 - 13 | |
| Security | Open, WPA, WPA2 | |
| Encryption | AES, TKIP, TKIPAES | |
| Connection number | 16(Max) | |
| Speed | 300Mbps(Max) | |
| Transmit Distance | Outdoor non-blocking/opening, covering up to 20 meters | |
| SSID Broadcast Switch | Support | |
| Cellular Network | Antenna Port Qty | 1 |
| Antenna Port Type | SMA | |
| 4G(L-E) | GSM/EDGE:900,1800MHz WCDMA:B1,B5,B8 FDD:B1,B3,B5,B7,B8,B20 TDD:B38,B40,B41 | |
| 4G(L- AU) | GSM/EDGE:850,900,1800MHz WCDMA:B1,B2,B5,B8 FDD:B1,B2,B3,B4,B5,B7,B8,B28 TDD:B40 | |
| 4G(L-A) | WCDMA:B2,B4,B5 FDD:B2,B4,B12 | |
| 4G(L-V) | FDD:B4,B13 | |
| 4G(L-J) | WCDMA:B1,B3,B8,B18,B19,B26 FDD:B2,B4,B12 TDD: B41 | |
| 4G(L-CE) | GSM/EDGE:900,1800MHz WCDMA:B1,B8 TD-SCDMA:B34,B39 FDD:B1,B3,B8 TDD:B38,B39,B40,B41 | |
| SIM | Qty | 2 |
| Interface Spec | Drawer interface, supports 1.8V/3V SIM/UIM (NANO) | |
| Protection | In-built 15KV ESD Protection | |
| GPS (optional) | Antenna qty | 1 |
| Antenna type | SMA | |
| Tracking Sensitivity | > -148 dBm | |
| Horizontal Accuracy | 2.5m | |
| Protocol | NMEA-0183 V2.3 | |
| Digital input | Qty | 2 |
| Type | Switch contact signal (dry node) or level signal (wet node) | |
| Range | 1: High level, 5~30VDC, close signal 0: low level 0~1VDC open signal | |
| Pulse frequency | Max 100Hz | |
| Protection | Isolation voltage 3750Vrms | |
| Digital output | Qty | 2 |
| Type | SINK output | |
| Load voltage | Max 50VDC | |
| Load current | 500mA(single), 625mW | |
| Protection | EFT: 40A(5/50ns) | |
| Analog input | Qty | 4 |
| Type | 0~5V,4~20mA,0~20mA | |
| ADC Resolution | 16bit | |
| Protection | EFT: 40A(5/50ns) | |
| Indicator light | ALARM | Alarm indicator light |
| SYS | System running status indicator | |
| 4G | 4G status indicator | |
| WiFi | WiFi status indicator | |
| DO1, DO2 | Digital output indicator light | |
| DI1, DI2 | Digital input indicator light | |
| System | CPU | MIPS CPU, Clock Speed 580Mhz |
| Storage | 16MB (Scalable to 32MB) | |
| RAM | 128MB (Scalable to 256MB) | |
| Software | Network Protocol | PPP, PPPoE, TCP, UDP,DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS,SNMP etc. |
| VPN | Ipsec, OpenVPN, L2TP | |
| Firewall | DMZ, DoS defense, IP packet, Domain name and MAC address filtering, port mapping, access control | |
| Remote Management | Support web remote configuration | |
| System Log | Support | |
| Firmware Upgrade | Support serial port local TFTP/web firmware upgrade | |
| Certificate | EMI | EN 55022: 2006/A1: 2007 |
| EMS | IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8 | |
| MTBF | 100,000 hours | |
| Others | CE, FCC, ROHS, 3C | |
| Working Environment | Working temperature | -40~85ºC |
| Storage temperature | -40~105ºC | |
| Humidity | 5~95%RH | |
| Others | Enclosure | Metal |
| Size | H145mm * L110mm * W45mm | |
| IP level | IP30 | |
| Net weight | 790g | |
| Installation | Wall-amount/Rail-amount |
