3 Layer Oscillating IBC Die 1800mm Film Blowing Machine

Product Description

Widely used in producing base of composite membrane,liquid film, contractive film. protective film, cable film, macromolecule adhesive film, multi-functional industrial film products.
The tractor adopts horizontal swing rotary to replaces die rotary and simplifies the die structure. It soloves problems of leakage, poor sealing and maintenance etc. arising from die rotary which ensures the good film smoothness.
The IBC internal bubble cooling system makes an improvement of film quality and transparency as well as the output.
High precision fold diameter control system adjust the air current through controling the fan speed and decrease the error of the film bubble diameter.
EPS corrective system and the automatic corrective leading promise the film's smoothness.

Model	FMI3-1300	FMI-1600	FMI-1800	FMI-2200
suitable material	LDPE / LLDPE / HDPE
thickness	0.02--0.20mm
film width	1100mm	1400mm	1600mm	2000mm
max output	80kgs/hr	105kgs/hr	150kgs/hr	215kgs/hr

Extruder

screw diameter	Φ45mm*3	Φ55mm*3	Φ65mm*3	Φ75mm*3
L/D ratio	30:1
temp. controller	15 zone	15 zone	16 zone	16 zone
barrel cooling	120w*4	120w*4	120w*6	250w*6
driving motor	11kw*3	18.5kw*3	22kw*3	30kw*3

Die head

die diameter	Φ250mm	Φ350mm	Φ450mm	Φ630mm
air ring diameter	Φ350mm	Φ450mm	Φ550mm	Φ900mm
die structure	Spiral mandrel die chrome plated surface 40Cr
cooling fan	2.2kw	3kw	4kw	5.5kw

Take up part

take up width	1300mm	1600mm	1800mm	2200mm
effective width	1100mm	1400mm	1600mm	2000mm
take up motor	1.5kw	1.5kw	2.2kw	3.7kw
rotary angel	±360°
corrective system	auto corrective oriented system

Winder

winder width	1300mm	1600mm	1800mm	2200mm
effective width	1100mm	1400mm	1600mm	2000mm
winder motor	1.5kw	1.5kw	2.2kw	2.2kw
ooptional equipment	auto-loader device, film surface treater, air compressor,, fast change net, auto rewinder, double wind air ring, IBC inner cooling die head

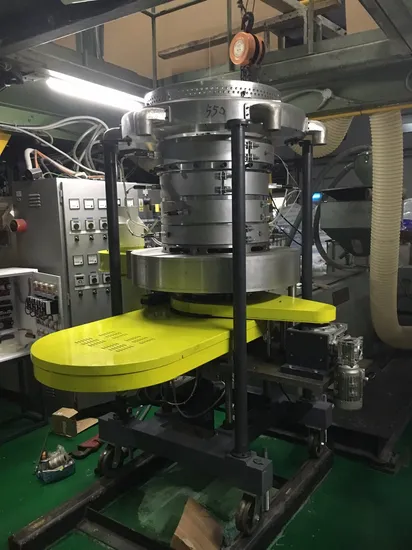

PICTURES FOR REFERENCE:
