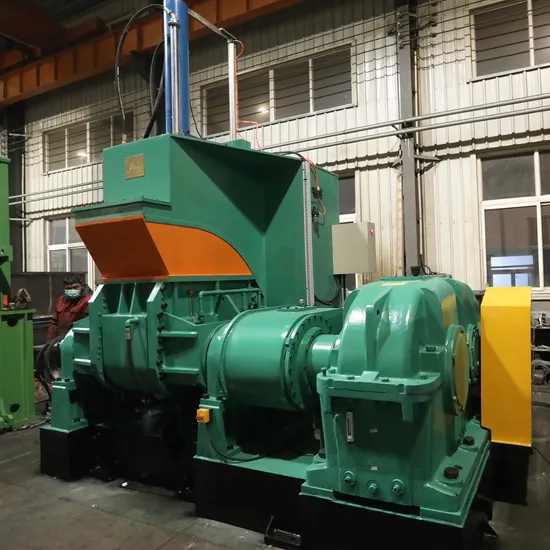

China Deyu Dispersion Kneader 75L for Rubber and Plastic

Product Description

Deyu milling machine/rubber pressure dispersing mixer:
Application: for rubber/plastic plasticating and mixing
Features:
rotor shaft of the machine adopt Taiwan technology, rotor ribbed spiral angle and working length of resonable
design, can make the material to obtain the best effect of kneading, and faster than ordinary milling machine
refinded material 1-2 minutes per session, the rotor edge peak and end face for surfacing welding wear-resisting
carbide, rotor and mixing chamber pressure lead, direct contact with the material of surface are after throwing grinding
hard chromium plating(0.1mm) as bright as mirror and wear-resisting corrosion resistance. Rotor outside contact pressure type non-lubricated seal structure, the sealing ring is made of high quality copper manufacturer wear-resisting
good sealing effect.
Mixing chamber and top of the frame joint that hang a wall, use arc board slot labyrinth seal structure, seal dustproof
effect is good. Electric control system use the south Korea import LS electrical components, effectively reduce the incidence of the failure, a perfect and reliable.
Detailed specification:

	X(S)N 3 x 32	X(S)N 5 x 32	X(S)N 20 x 32	X(S)N 25 x 32	X(S)N 35 x 32	X(S)N 55 x 30	X(S)N 75 x 30	X(S)N 110 x 30	X(S)N 150 x 30
total volume of mixing chamber	8 L	15	45	55	75	125	170	250	325
working volume of mixing chamber	3 L	5	20	25	35	55	75	110	150
driving motor power	5.5Kw	11	37	37	55	75	110	185	220
tilting motor power	0.55 Kw	1.1	1.5	1.5	2.2	3	3	5.5	11
tilting angle	140	140	140	140	140	140	140	140	135
rotational speed of the motor (front/rear)	32/24.5 r/min	32/23.5	32/27	32/27	34/28	34/28	34/28	30/24.5	30/24.5
pressure of compresor air	0.5/0/8 MPa	0.6/0.8	0.6/0.8	0.6/0.8	0.5/0.8	0.6/0.8	0.6/0.8	0.6/0.8	0.6/0.8

capacity of compressor air	≥0.3 m³/min	0.5	0.7	0.7	0.9	1.0	1.0	1.5	2.0
pressure of cooling water (rubber mixing)	0.2-0.4 MPa	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
pressure of heating steam (plastic mixing)	0.5-0.8 MPa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
dimension	2000 1000 2220	1850 1200 2580	2675 1650 2560	2675 1650 2560	3200 1900 2950	3230 1927 2958	3325 2615 3105	4075 2712 3580	4250 2750 4106
gross weight	2 ton	2.1	4	4.5	6.3	7.1	9.5	14.5	19.5
