Hand Held 2 Wheel Walking Tractor Walk Behind Tractor

Product Description

Brief Introduction of Walking Tractor
The walking tractor is a small tractor with a simple structure and low power, which is suitable for small arable land. The driver supports the armrest to control the operation and can be equipped with a variety of agricultural tools for operation. One machine with multiple functions is a very reliable multifunctional walking tractor.


Features of Walking Tractor
1. The walking tractor has the advantages of a compact model, flexible operation, and strong adaptability, stable performance, one machine for multiple uses.
2. Equipped with different agricultural machinery and tools, it can be used for plowing, rotary tilling, soil crushing, ditching, ridging, fertilizing, sowing, weeding, harvesting, and other field operations. Equipped with a trailer, it can also be used for short-distance transportation.
3. This walking tractor is suitable for terrain including plains, basins, hills, mountains, pineland, hard land, sandy land, dry land, vegetable garden, orchard, greenhouse, etc.

parameters of walking tractor

Model	15HP walking tractor
Engine parameter	Engine model			ZS1100
	Engine Type			Single, horizontal, water-cooled, four-stroke
	Starting method			hand start / electric start
	Combustion System			direct injection
	Cooling way			Evaporative/condensing
	Power		1 hour	12.13kw/16hp
			12 hour	11.03kw/15hp
Dimensions(LxWxH)		2680×960×1250mm
Min. Ground Distance		185mm
Wheelbase		580-600mm
Weight		350kg
Tire Model		6.00-12
Tire Pressure		Field Work		80~200(0.8~2.0kgf/cm2)
		Transportation Work		140~200(1.4~2.0kgf/cm2 )
Triangle belt		4 B1880

Walking Tractor Attachments

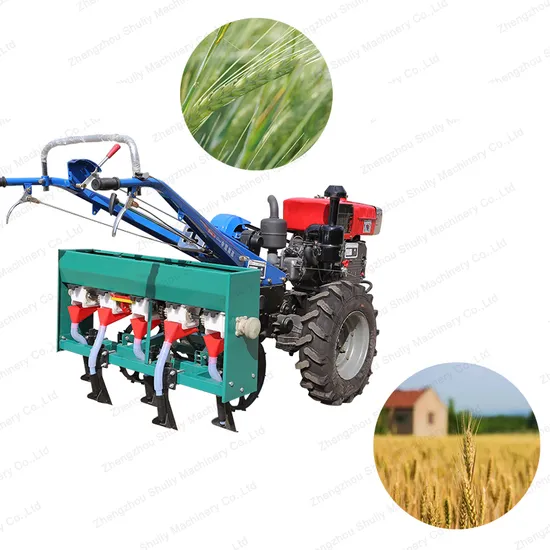

The walking tractor can be used with single-share plows, double-share plows, disc plows, rotary tillers, paddy wheels, balers, trailers, wheat planters, corn planters, and other agricultural machinery.
