HC-C008 China 12.1 inch CTG Fetal Doppler Monitor/ Doppler fetal monitor

Product Description

Product Description
HC-C008 China 12.1 inch CTG Fetal Doppler Monitor/ Doppler fetal monitor
Trade assurance
Product Description
Features for fetal doppler monitor:
Alarms for fetal tachycardia or bradycardia,low power and paper missing.
12.1 inch TFT color screen, which can be folded up to 90 degrees.
152 mm thermal printing paper.
DSP technology, real-time identify and measurement for FHR, accurate and reliable results.
High sensitive and water-proof FHR probe with built-in FAS function (Fetal Acoustic Stimulator).
Fetal movement displaying and printing function.
Manual and automatic fetal movement recording.
24 hours data storage, which can be played back and printed.
Special patient and clinical event marking.
Built-in 16.8V lithium battery which applicable for AC and DC.
Supports both cable and wireless network connection and can be used with the central monitoring station to set up a network system.
Advanced technology, realtime identify and measurement for FHR, accurate and reliable results
Multi-crystals, wide beam form high sensitivity ultrasound transducer, 1MHz pulsed wave, low ultrasound power, safer to the fetus
24 hours data storage which can be playback and printed
Fetal acoustic stimulator function, which can easily and safely wake up the sleeping fetus when monitoring
A standard patient event marker and a clinical event marking button to separately mark clinical events.
Wide range of applying voltage (100-240 V)
Manual / automatic fetal movement detection
3 in 1 transducers, avoid twisting.
Many alarm functions are included: The monitoring time over alarm, no paper alarm.
Optionals
Twins monitoring
Maternal SpO2, NIBP, PR, ECG, TEMP, RESP
Specification
Fetal Heart Rate:
Transducer: Multi-crystals, pulsed doppler , high sensitive
Strength: <5mW/cm2
Working frequency: 1.0MHz
Signal processing: special DSP system and modern recognization.
Measurement range: 30~210 bpm
Alarm Range:
High limit: 160,170,180,190 bpm
Low limit: 90,100,110,120 bpm
Maximum audio output power : 1.5 Watt
Toco: Measurement range: 0~100 units
Resolution: 1
Fetal Movement: Button Hand Count ( Automatic cumulative number of movements
Maternal SpO2 measure: Measure scope : 70%~99%. Measure accuracy: ±3%
Pregnant HR Measure: Measure scope: 30bpm~240bpm. Measure accuracy: ±2 bpm
NIBP measure:
a) NIBP-SYS (6.7~32.0Kpa) (50~240mmHg)
b) NIBP-DIA (3.4~26.6Kpa) (25~200mmHg)
c) NIBP-MEAN (2.0~24.0ka (15~180mmHg)
NIBP Accuracy: ±1.1kPa (±8mmHg) or ±5% of the results, take the bigger one.
Maximum Mean error: ±5mmHg
Maximum Standard deviation 8mmHg
Pulse Rate Accuracy: Maximum Mean error: ±2bpm
Measure accuracy: ±2 bpm or ±5% of the results, take the bigger one.
Measure mode: Auto, Manual
Power: a.c.100-240V,50/60Hz or 8.4 Li-LON
Power Consumption: < 20W
Dimension: 295W×240D×73H(mm)
Net weight: 1.75kg
Working Environment: Temperature: 5~40°C. Relative humidity: 10~80%.

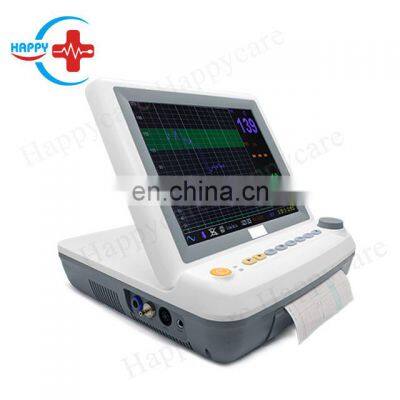

Pictures for fetal doppler monitor:
HC-C007 Hot 7 inch Fetal Monitor:
Hot sale patient monitor:
HC-C003 Medical 12.1 inch patient monitor HC-C002 Medical 8 inch patient monitor
Packaging & Shipping
Company Information
Our Services
FAQ
1. How to place order of fetal doppler monitor ?A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For fetal doppler monitor product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our fetal doppler monitor , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For fetal doppler monitor , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For fetal doppler monitor , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
