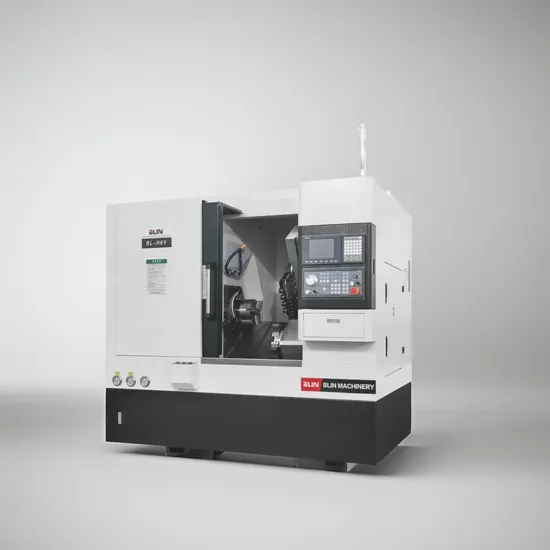

Reliable Live Tools Slant Bed CNC Turning Center Lathe (BL-H6Y) for Various Applications

Reliable Live Tools Slant Bed CNC Turning Center Lathe (BL-H6Y) for Various Applications

US$38,000.00-41,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BL-H6Y
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Collet Chuck Size
6′′/8′′
Max. Swing Dia. Over Bed
Φ350mm
Max. Turning Length
250mm
Max. Turning Dia.
200mm
Spindle Bore
56/66mm
Spindle End Type
A2-5/A2-6
Spindle Speed
4500/4000rpm
Spindle Motor Power
11kw
Tool Turret Type
8t Hydraulic Tool Turret& 4+4 Independent Live Too
Positioning Accuracy(X/Y/Z)
0.008/1000mm
Repeat Positioning Accuracy(X/Y/Z)
≤0.005mm
Transport Package
Wooden Case
Specification
350*250mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description


- Adopt TAIWAN technology, most parts adopt GERMANY/TAIWAN brand
- Adopt 30°mono-block slant bed design,super-heavy bed, high stability
- Adopt modularization design, easy for various especial configuration choice, such as parts catcher etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- Mount 8T hydraulic tool turret and 4+4 Independent live tools with Y axes
Details:
Item Specification Unit BL-H6Y
Capacity Collet chuck size / 6'' 8''
Max. swing dia. over bed mm Φ350
Max. turning length mm 250
Max. turning dia. mm Φ200
Standard turning dia. mm Φ150
Spindle Spindle bore Mm Φ56 Φ66
Spindle end type / A2-5 A2-6
Spindle speed rpm 4500 4000
Max. bar through dia. mm 44 51
Spindle motor power kw 11
X/Z axes X/Y/Z axes linear guideway width mm 30/30/30
X,Y,Z axes ball screw O.D./Pitch mm Φ32/10,Φ25/10,Φ32/10
X axes travel mm 350
Y axes travel mm 220
Z axes travel mm 300
X/Y/Z axes rapid moving speed m/min 24/16/24
Tool turret Tool turret type / 8T Hydraulic tool turret&
4+4 Independent live tool group with Y axes
Live tool collet size / ER25
Live tool speed rpm 3000
Tool shank size mm 20×20, Φ25
Tailstock Tailstock / N/A
Accuracy Positioning accuracy(X/Y/Z) mm 0.008/1000
Repeat positioning accuracy(X/Y/Z) mm ≤0.005
Others Overall size mm 2270×1940×2070
N.W. kg 3000

Main parts list:
Item Brand
Spindle unit TAIWAN-ROYAL
magnet ring encoder TAIWAN-SYNTEC
Brake system JAPAN-SANYO
Tool turret TAIWAN-GSA/YULIN/SWIFT
Live tool group CHINA top
Ball screw TAIWAN-HIWIN C3 class
Ball screw bearing GERMANY-FAG
Linear guideway TAIWAN HIWIN
Lubrication system TAIWAN-ISHAN
Rotary oil cylinder TAIWAN-AUTOGRIP
Hydraulic parts TAIWAN/JAPAN
Heat exchanger Joint-venture
Main electricity parts FRANCE-SCHNEIDER

Standard configuration:
-SYNTEC 21TB CNC controller
-Hydraulic collet chuck
-8T hydraulic tool turret
-4+4 Independent live tool group with Y axes
Optional configuration:
-FANUC 0i TF CNC controller
-Automatic chip conveyor
-Parts catcher
-Bar feeder
Other models choice:
All our machines range:
