Full-Function CNC Lathe Ad-10/Ad-15b/Ad-25

Product Description

Full-function CNC lathe AD-10/AD-15B/AD-25

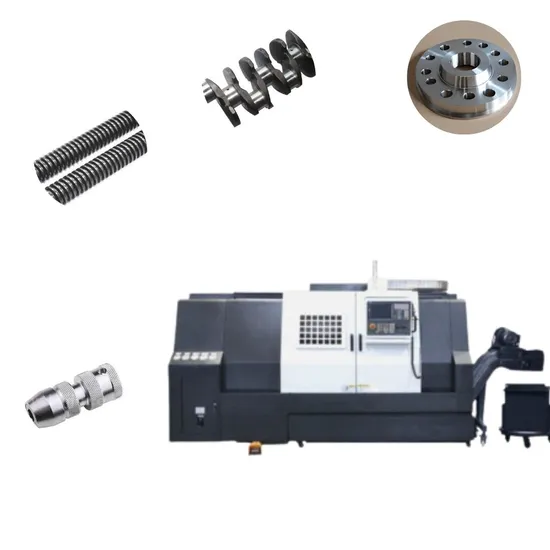

The main performance characteristics: The AD series CNC lathe is a high-peed precision CNC machining equipment produced by introducing Japanese technology. t is suitable for machining various kinds of the shaft, sleeve, and dish-type parts with complicated shapes. such as turning cylindrica-conical surface. circular surface. end surface groove cutting, chamfering, hole reaming,etc. Main structural features as following:
1. The machine bed is cat with a box-shaped structure,adopts one-piece casting technology,completely machined by the pentahedral machining center at a one-time clamping process.the accuracy is maintained well.
2.Adopt high rieidity 45 inclined machine bed. The sliding surface of the cross slide adopts plastic veneer technology to make the feed system rigid,frictional resistance,and other dynamic and static characteristics ln the best condition.A separate sink is attached to prevent leakage and easy to maintain.
3.The hydraulic turret is adopted. and the tool holder can be interchanged at any position. lt can rotate nearby to change the tool at wil. The tool changespeed isfast and the action is stable and reliable.
4.High rigidity spindle structure.there is no gear structure in the spindle box.reatlv reducine noise and vibration.
5.Equipped with hydraulic chuck and high-speed cylinder,and equipped with foot switch,workpiece clamping is convenient, safe, and reliable.
6. Theand -axis eed drives use are-dameter. high-precision bal screws. and are preoaded and pre-drawn. ensure movement and position accuracy.
7.The lathe has ful-chip protection. electric contro cabinet satety device.sate operation door, and reinforced glass desien ofthe operation door to ensure thesafety ofmachinery and personal.
parameters :

Model No.
Item No.	AD-10	AD-15B	AD-25
Specifications
Swing over bed	450 mm	500 mm	600 mm
Max.dia.cutting	300/260 mm	320/320 mm	420/420 mm
Max.length of workpiece	600/1100mm	600/1100mm	625/1000/1500/2000/3000mm
Max.turning length	450/950 mm	450/950 mm	530/905/1405/1905/2905mm
Feed motion

X-axis travel	170mm	190mm	230mm
Z-axis travel	460/960mm	460/960mm	590/965/1465/1965/2965mm
Rapid travel of X	18m/min	18m/min	12m/min
Rapid travel of Z	20m/min	20m/min	15m/min
X/Z feed speed	1260mm/min	1260mm/min	1260mm/min
Spindle
Spindle speed	50~4500 rpm	45~4000 rpm	35~3500 rpm
Spindle power	7.5 kw	11kw	18.5/15 kw
Spindle nose	A2-5	A2-6	A2-8
Spindle bore(Dia.)	50 mm	62 mm	87 mm
Size of chuck	6 inch	8 inch	10 inch
Front bearing dia.	80 mm	100 mm	130 mm
Tool post&Tailstock
NO.of staions	8	8	12
Indexing time	0.58s	0.58s	0.3S
Size of turret	20x20 mm	25x25 mm	25x25 mm
Dia.of bar shank	32 mm	40 mm	40 mm
	360 mm	360/860 mm	490/865/1365/1865/2865mm
Quill Dia./travel	80/100 mm	80/100 mm	85/80 mm
Quill taper hole	MT-4	MT-4	MT-5
Other
Main power	20 kw	25 kw	30 kw
Weight	3.5/4.5 t	3.6/4.8 t	5/5.5/6.5/7.5/8.5 t
Length	2575/3470 mm	2575/3470 mm	3000/3380/4550/4960/6160 mm
Width/Hight	1485/1700 mm	1485/1700 mm	1545/1950 mm
Accuracy/roughness	IT6/Ra0.8 μm
CNC system	Fanuc 0i-TF /GSK988TD/Siemens828

Standard Accessories	Special configuration
Domestic motor;X/Z motor is GSK motor	Other system
Hydraulic tailstock, hydraulic turret, hydraulic chuck	Special hydraulic tailstock, hydraulic rotatingtailstock
X/Zimported precision ball screw	Special required chuck and turret
Spindle bearings and ball screw bearings are Japan NSK	Hydraulic steady rest
Imported electrical components, hydraulic components.(AD25 domestic)	Chip removal machine
Fully enclosed chip guard, air conditioning for electric cabinet
