yarn electronic twist tester |twist testing of single yarn

Product Description

Product Description

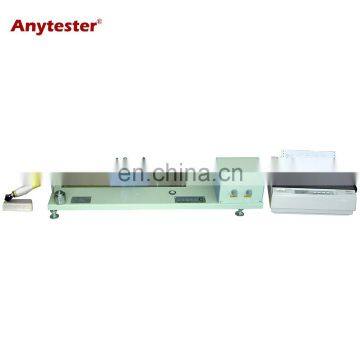

Product DescriptionAT068D Electronic Yarn Twist Tester is used to determine yarn twist of single yarn, plied yarns and all the other yarns by conventional or untwist/re-twist method.Standard ISO 2061GB/T 2543.1, 2543.2BS 3356Features1. It is suitable for various yarns2. Adjustable pre-tension according to yarn category 3. Adopt micro-computer control, with automatic data processing, display and printout, accurate, stable and reliable 4. It can also be connected to computer to achieve more analysis function 5. With imported dedicated clock circuit, the system time can be printout on the report 6. Yarn holder directly driven by motor, stepless speed regulation; Also designed with speed measurement function to accurately determine the rotating speed of yarn holder (motor)7. CPU automatically judges the rotating direction of yarn holder, processing and counting, the division value can be 1/10twist8. PC port and Printer port available 9. Special software to analysis test resultSpecification ModelAT068DTwist range1~1999twistTest times100timesLinear density1~499.9texTest length10~500mm, settable Test methodF0: Direct counting method F1: Untwist/re-twist method (method A)F2: Untwist/re-twist method (method B)F3: Three times of untwist/re-twist methodTest speed 100~1900r/min, stepless adjustable Jog speed 100~1900r/min, stepless adjustablePower supply AC220V±10% 50HzRated power 20wDimensions 890mm×290mm×215mmWeight 11kg
