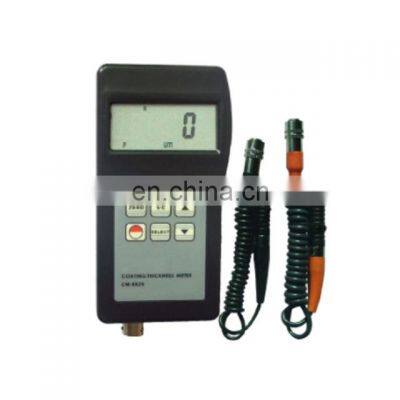

CM series Coating Thickness Standards Thickness Gauge

Product Description

Product Description
Product DescriptionFeatures* Two principles: Magnetic Induction and Eddy Current. * Two measurement mode: Single and Continuous. * Metric/imperial system selectable.* Manual or automatic power off.* Automatic memory of calibration value, and automatic recognize the substrate.* Operation process have buzzing reminder.* Integral Type have better stability and repeatability. * Separate Type can provide several types of probes, measure can be more flexibility. * Use RS-232 data output to connect with PC.* Provide Bluetooth data output choice.ApplicationsCoating thickness gauge is a kind of portable measuring instrument, can take fast, intact, precise measurement of coating thickness. It can not only be used in engine-ering field, laboratories, but also meet the demand of multiple measuring by using different probes. It is used widely in manufacturing, metal processing industry, chemical industry, commodity inspection field, etc. As an essential instrument in material protection industry.Technical ParametersSpecificationRange0~1250µm / 0~50milResolution0.1µm / 1µmAccuracy±1~3%n or ±2.5µmMin. Radius WorkpieceF Type: convex 1.5 mm / concave 25 mm NF Type:convex 3 mm / concave 50 mmMin. Measuring Area6 mmMin. Sample Thickness0.3 mmMetric / ImperialConvertibleBattery IndicatorLow Battery IndicatorAutomatic Power OffyesTemperature0~50°CRS-232C Data Cable with SoftwareoptionalBluetooth Data Adapter with SoftwareoptionalCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Related productsAbout UsTrade Terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.
