CE Heating Mixer Tank Jacketed Mixing Machine Epoxy Resin Turnkey Project Reactor Cosmtico

Product Description

Product Description

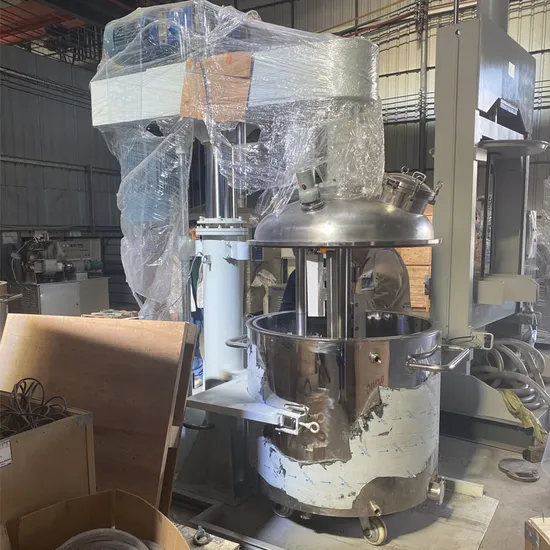

Ce Heating Mixer Tank Jacketed Mixing Machine Epoxy Resin Turnkey Project Reactor Cosmtico

Type	50L	100L	200L	300L	500L	1000L	1500L	2000L	3000L	4000L	5000L
Cylinder size (mm)	450*500	450*500	600*700	750*750	900*800	1200*1000	1300*1200	1400*1500	1600*1500	1700*1800	1800*2000
Actual capacity (L)	61	150	253	396	699	1393	2166	3000	4066	5400	6600
Jacket capacity (L)	65	120	200	250	290	560	617	750	1015	1226	1440
Heating Area (m2)	0.78	1.36	1.9	2.7	2.7	4.5	5.9	7	9	11	12.8
Motor power (kw)	0.56	1.36	1.5	2.2	2.2	4	5.5	5.5	7.5	11	11
Rotating Speed (r/min)	85	85	85	85	85	85	85	85	63	63	63

1. Volume: 50 ~ 30000L 2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE 3. Agitator: anchor , frame , paddle , multifunction etc. 4. Optional: heating or cooling 5. Type: single layer, double layer (jacketed type), limpet coil type 6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc. 7. Warranty: 1 year 8. We support customization.
Reactor blades
Sigma mixer application scenarios
Recommended Products Company Profile
The JCT machinery has been producing industrial mixing, dispersing, kneading.blending and drying for over 15 years since 2006. We take 'make the mixingmore easier' as our belief and purpose in order to increasing the durability anoapplied in varius industries including cosmestics, chemical, plastics, batteryslurry, inks, pharmaceuticals, platics, adhesives, sealant, electronic pastes andglues etc.
We design and customise for every unique project by starting with 3D craftexposion, Our reliable team of engineers, sales managers, marketing andproduct analyzers are always ready for solving your inquiry and question onapplications.
JCT machinery now has over more than 10 product lines are ready for helpingyou find out best solution of your project including, silicone sealant, hot meltglue, battery slurry, rubbers and paint etc.
