Nikon Eclipse Ma200 Research with an Inverted Metallurgic Microscope

Product Description

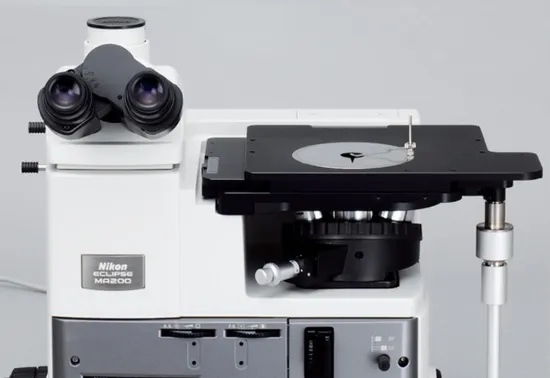

Nikon ECLIPSE MA200 inverted metallurgic microscope
Using innovative box appearance, modular design, reflective lighting research with inverted metallurgic microscope , support a variety of microscopic inspection methods, can be matched with a digital camera, widely used in material research.
An ergonomic and advanced inverted metallurgic microscope for scientific research
Using Nikon CFI60-2 optical system design, clear imaging, support open field, dark field, polarized light and differential interference and other mirror detection, can be matched with a digital camera to take photos, set a variety of functions and a suit.
Box structure, robust and durable; smaller footprint than TME300, saving about a third of space.
High optical performance, uniform lighting, energy saving and power saving
Using Nikon unique CF160 optical system, not only can get high contrast, clear open field image, but also can get the dark field image of the past 3 times; newly developed 1 times and 40 times objective, ocular field number of 25mm, combined with the newly developed 1 times objective, the diameter of 25mm samples can also see all at all;Even lighting, clear image;The newly developed 12V50W halogen lamp lighting, its lighting brightness is completely comparable to the past 12V100W halogen lamp lighting, and the power can be saved by half.
Product characteristics
Cubic design, space saving, high seismic
The Nikon MA200 saves 33% more space than the TME300, and this new design more effectively improves the operability of the instrument, while also reducing the damage caused by long observations.
Easy operation
Parts that often need to operate are concentrated close to the observer, at the front of the microscope. Such as: field of view diaphragm, aperture diaphragm, crane, detector, plate insertion and light and dark field switching, etc.
A variety of mirror examination methods
Indirect illumination. There are some microscopic options: open field, dark field, polarization (POL), and differential interference (DIC).
A variety of accessories
There are a variety of accessories available for users to choose from.
Light room, load stage, objective lens, objective lens converter, eyepiece, eye lens cylinder, digital camera, filter and polarizer and other various accessories.
Digital and intelligent communication
Using an objective converter with sensors, the MA200 can check the current objective lens with a Nikon microscope to automatically complete the multiplier correction.
Nikon microscope can also remotely control the electric objective conversion and illumination light intensity.
Ergonomic design
Using an eyepiece cylinder with adjustable inclination angle enables the operator to observe the sample more comfortably and eliminate fatigue.
The fuselage structure design is compact. The sample to be observed is directly placed on the loading table, and the sample does not need to be flattened or leveled.
Product Parameters

Optical system	CFI 60 system
Observing the image	Vertical inversion image
Observation method	Bright field, dark field, differential interference, fluorescence, simple polarization, etc
The focus part	Objective lens converter lift type (when the carrier is fixed) single axis coarse fine tuning focal hand wheel stroke 8.5mm, coarse adjustment 37.7mm/1 turn.
Revolving nosepiece	Open field, dark field, 5-well objective lens converter
Objective table	MA-SP flat loading stage: size 170X230mm (with 2 propylene sample clips / openings φ 30mm, crescent type) MA-SRSH 1 holder 1 and MA-SH3 holder 3 can be installed
	T1-SM mechanical object loading table CH; Travel of 126mmx80mm relative to the flat object loading stage. The hand wheel can be mounted on the left or right side with the MA-SH1 specimen holder 1, MA-SH2 specimen holder 2, and C-HU universal specimen holder
