Cx680c Diamond Multi-Wire Saw Cutting Machine for Magnets Quartz Crystal Processing Tool
| US$48,000.00-200,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CX680C
Condition
New
Certification
CE, ISO 9001: 2015
Automation
Automatic
Suitable for
Alloy, Sapphire, Quartz Crystal, Silicon, Magnets
Maximum Worksize
160X680X160mm
Maximum Running Speed
1200m/Min
Workbench Quantity
2
Roller out Diameter
155X155X690mm
Roller Quantity
4
Wire Diameter
0.12-0.25mm
Wire Spool Storage
40km
Travel of Worktable Lifting
245mm
Cutting Method
Vertically Upward Movement
Cutting Fluid
Water-Based Cutting Fluid or Cutting Oil
Fluid Storage
800L
Fluid Flow Rate
200L/Min
Dimension
2950X1920X2500mm
Weight
6000kg
Test Cut
Provide Test Cut Service
Transport Package
Wooden Case
Trademark
LiKai
Origin
China
HS Code
8464109000
Production Capacity
350sets/Year
Product Description

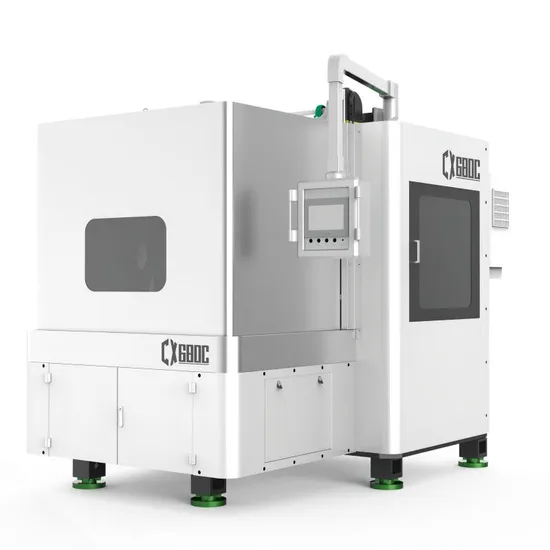

Product DescriptionCX680C Multi-wire Saw
CX680 Multi-wire Saw is mainly used for straight slicing of Rare Earth Permanent Magnet, Quartz Crystal, Optical Glass, Precious Metal and other hard and brittle materials. The machine adopts four rollers direct drive + roller rotation adjustment structure, which can achieve the cutting of products within 30mm.
Product Features
>Double Worktable
The machine adopts double-station design and is able to cut two plates materials at the same time.
>Whole-casted Frame
The whole casting structure has high damping coefficient and excellent vibration damping performance.
>Stable Wire Web Control
The rollers and wire spools adopt cone-positioned structure with high accuracy and high rigidity to control wire net shaking.
>Save Labor and Time
The roller auxiliary disassembly bracket can effectively reduce the labor intensity and disassembly time.
>Easy Operation
The cutting room is open on 3 sides for easier operation and maintenance.
>Safety Guarantee
The main operation door can be raised and lowered electrically with safety device.
>Wire break memory system.
Product Parameters
| Detail | Parameter |
| Model | CX680C |
| Maximum work size | 160×680×160mm |
| Workbench quantity | 2 |
| Roller out diameter*Workable width | (φ155±10mm)x690x4 |
| Wire Diameter | φ0.12mm-φ0.25mm |
| Wire spool storage | 40km(φ0.25mm) |
| Maximum running speed | 1200m/min |
| Travel of worktable lifting | 245mm |
| Cutting method | Vertically upward movement |
| Cutting feed speed | 0.1-99.9mm/min |
| Cutting fluid | Water-based cutting fluid or cutting oil |
| Fluid storage | 800L |
| Fluid flow rate | 200L/min |
| Power supply | 380V±10% 50Hz |
| Power | 41Kw |
| Air supply | Adopting water-based cutting fluid, the air pressure is ≥0.4MPa. |
| Size L*W*H | 2950*1920*2500mm |
| Weight | 6000Kg |
