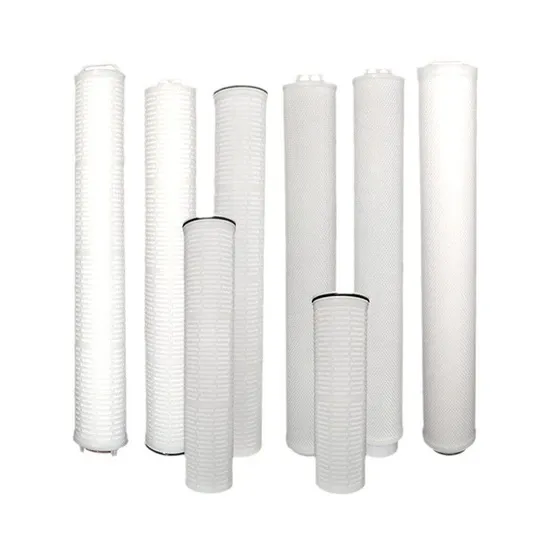

Ranch Application: 40 Inch 60 Inch Pleated High Flow PP Filter Filter Cartridge

Product Description

Product DescriptionThe high flow filter element is made of polyester fiber cloth filter material, which has durable performance. The filter medium, center rod, and end cap are glued together as a whole to ensure better sealing of the end cap. Due to its folding design, it provides a larger filtration area, longer filtration life, reduces the number of filter element updates, and lowers filtration costs compared to other filter elements. From an industrial value perspective, it is an economical filtration product
Product Parameters

High flux filter element
Specifications	10 inches	20 inches	30 inches	40 inches	60 inches
Processing capacity	8t/h	15t/h	22t/h	30t/h	45t/h
Precision	1-100um	1-100um	1-100um	1-100um	1-100um
Number of boxes packed	16 sticks/box	8 sticks/box	4 sticks/box	4 sticks/box	2 sticks/box
Other parameters	Market precision: 1um 5um 10um 20um
	Common interface configuration: p-all type, Pike type, 3m type, fess fall type and so on
	Support for various other specification parameters"Non-standardized customization."

Certifications
Packaging & Shipping1. Products are packed by shrink film. It can reduce abrasion when transport.
2.Products are packed by high quality carton, suitable for long distance ocean freight transportation as well as changing climate and with good resistance to moisture and shocks.
Delivery time:
1. If this kind of products is in stock, the product will be sent for you 1-7days after payment.
2. If this kind of products is not in stock, the products will take about 7-25 days to produce.
Installation Instructions1. First, check the O-ring, clean the filter element sealing ring in a timely manner, and place it flat in the sealing groove;
2. Soak the O-ring with process fluid;
3. Remove the packaging bag, cover the head, assemble the filter element, and tighten the filter hanging cover clamping bolt;
4. Unscrew the vent valve on the top of the casing;
5. Loosen the inlet valve slightly to allow the liquid to enter the casing until it flows out of the vent valve, and then close the vent valve;
6. Gradually unscrew all the outlet valves, and then slowly unscrew the inlet valves;
7. Flush the filter element with flow rate for 5-10 minutes;
8. The filter element cannot withstand high flow impact, nor can it be subjected to heavy pressure in the opposite direction.
Company ProfileChangsha Lingbo Environmental Protection Technology Co., Ltd. is a high-tech enterprise focusing on water treatment accessories. Its main products include RO membranes, ultrafiltration membranes, filter cloths, filter bags, filter elements, water tanks, dosing pumps, metering pumps, and pharmaceuticals, which are widely used in new energy, microelectronics, petrochemicals, medical, pharmaceutical, food and beverage, water treatment, and automobile manufacturing. We are able to provide RO systems and various water treatment products for residential, commercial, and industrial components. We not only focus on the quality and performance of our products, but we continue to research and innovate to provide more efficient, energy-saving, and environmentally friendly products and solutions for global customers.
Our AdvantagesWe focus on technological innovation and are committed to providing the best environmentally friendly filtration solutions for all industries. Based on comprehensive process knowledge, we offer various standard filter products, not only providing standard filter products for customers to choose from, but also designing and customizing according to customer requirements. We are a high-tech company that focuses on quality and competitive pricing. Filtering everything is our mission, let's work together to make the world cleaner.
1) Own factory
2) Good quality
3) Competitive price
4) Fast Delivery
FAQ1.Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. We can provide drawings according to your requirements.
2. Q: How to buy your products?
A: You can provide us your water sources, water quality, flow rate and ground area (contact us for more details)
3. Q: How to pay?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken:English,Chinese
