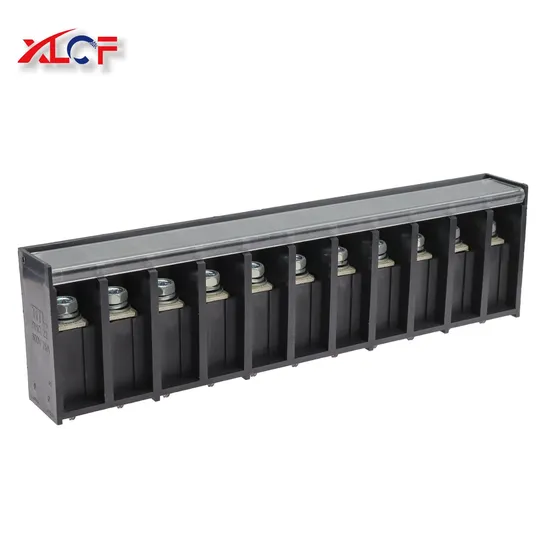

600V, 75A Terminal Block 20.00mm PBT Barrier Terminal Block Used in Power Supply

Product Description

Product Description
One screw = 1P =0.373USD
2P-24P Can be customised on request, welcome to enquire
Product Parameters

Center Space	20.00mm
Wire Range	26-4AWG
Screw Torque	25 Ibf · in
Rated Current	600V,75A
Surge Voltage	6000V
Insulation Body	PBT,UL94,V-0
Screw Material	M6,STEEL
Terminal Body	BRASS
Temperature	-40ºC~120ºC

Company Profile
FAQ
1.Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes, can contact us on line or send an Email to get catalogue.
2.Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products, but not all. So just let us know what product do you need,and how many do you want.
If we do not have it,we can also design and make a new mould to produce it.For your reference, making a ordinary mould will take about 35-45 days.
3.Q: Can you provide samples ? Are the samples free ?
A: Yes , we provide 5-10 pcs connector free samples for test. But you have to pay for the shipping cost.
4. Q: I need your price list of all your products, do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, and it's impossible to mark all of their price on a list.
And the price are always changing because of the material cost and quantity.
And you can give us a list for all of the item you needed, we will confirm carefully one by one, and give you specification and price list.
5.Q: What kind of payment do you accept ?
A: We accept T/T(Wire transfer), Western Union and Paypal.
6.Q:What kind of certificates do you have?
A:UL, CUL, VDE, CE, CQC
