Ceyear 4024 9kHz~67GHz Experimental Testing Instrument RF Spectrum Analyzer

Product Description

Product Description
4024 series spectrum analyzer 4024 series spectrum analyzer possesses many advantages: wide frequency range, high performance, high sweep speed, various functions, and easy operation. In terms of performance index, it has advantages of excellent displayed average noise level, low phase noise, and high sweep speed. In terms of measurement functions, it has measurement functions of spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as intelligent measurement functions of channel power, occupied bandwidth, adjacent-channel power, tune & listen, emission mask, and carrier-to-noise ratio etc. 4024 adopts the integrated design of 8.4 inch LCD and capacitive touch screen, which improves the display definition and operation convenient. It is handheld, compact and light, with flexible power supply, which is very suitable for field work.
4024 can be used for signal and equipment test in the fields of aerospace, microwave & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.

Features •Wide frequency range: from 9kHz to 67GHz, 9 models

•Low displayed average noise level: -163dBm@1Hz RBW(typical)

•Excellent phase noise performance:
-112dBc/Hz@100kHz frequency offset@1GHz carrier (4024A/B/C)
-106dBc/Hz@100kHz frequency offset@1GHz carrier (4024D/E/F/G/H/L)

•High sweep speed: for 1GHz span, shortest sweep time <20ms

•Resolution bandwidth: 1Hz~10MHz

•Full-band pre-amplifier: standard configuration

•Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel scanner, high accuracy power meter, signal analyzer etc.

•Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, carrier- to-noise ratio, emission mask•Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface, external triggering input interface etc.•Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen operation, combination of LCD and touch screen, various display modes etc.

•Working temperature range: -10ºC~50ºC, Power supplied by battery or adapter
specifications

Technical Specifications

Model	4024A/B/C/D/E/F/G/H/L
Frequency Range	4024A:9kHz~4GHz 4024B:9kHz~6.5GHz 4024C:9kHz~9GHz 4024D:9kHz~20GHz 4024E:9kHz~26.5GHz 4024F:9kHz~32GHz 4024G:9kHz~44GHz 4024H:9kHz~50GHz 4024L:9kHz~67GHz Tuning Resolution:1Hz
Frequency Reference	Frequency: 10MHz Aging: ±0.5ppm/Year Initial Frequency Accuracy: ±0.3ppm Temperature Stability:±0.1ppm(-10~50ºC, Comparative to 25ºC)
Sweep Time	Range: 10μs~600s (Zero Span) Accuracy: ±2.00% (Zero Span)
Frequency Readout Accuracy	±(Frequency Readout× frequency Reference +2%× Span +10%× Resolution Bandwidth)
Frequency Span	Range: 100Hz~Upper Frequency Limit of Corresponding Model or 0Hz Accuracy: ±2.0%
Resolution Bandwidth	1Hz~10MHz (1-3 Times of Stepping)
Video Bandwidth	1Hz~10MHz (1-3 Times of Stepping)
SSB Phase Noise (Carrier 1GHz)	4024A/B/C: ≤-108dBc/Hz@ Frequency Offset 10kHz ≤-112dBc/Hz@ Frequency Offset 100kHz ≤-118dBc/Hz@ Frequency Offset 1MHz ≤-129dBc/Hz@ Frequency Offset 10MHz			4024D/E/F/GH/L: ≤-102dBc/Hz@ Frequency Offset 10kHz ≤-106dBc/Hz@ Frequency Offset 100kHz ≤-111dBc/Hz@ Frequency Offset 1MHz ≤-123dBc/Hz@ Frequency Offset 10MHz
Displayed Average Noise Level (input port is connected with a 50Ω load, 0dB input attenuation, average detection, logarithm of video type, RBW normalized to 1Hz, tracking source off, 20ºC~30ºC)	4024A/B/C: Pre-amp Off: ≤-140dBm(10MHz~3GHz) ≤-138dBm(3GHz~9GHz) Pre-amp On: ≤-160dBm(10MHz~3GHz) ≤-157dBm(3GHz~9GHz)			4024D/E/F/G: Pre-amp Off: ≤-138dBm(10MHz~20GHz) ≤-135dBm(20GHz~32GHz) ≤-127dBm(32GHz~40GHz) Pre-amp On: ≤-157dBm(10MHz~20GHz) ≤-154dBm(20GHz~32GHz) ≤-148dBm(32GHz~40GHz)
	4024H/L: Pre-amp Off: ≤-135dBm(10MHz~20GHz) ≤-134dBm(20GHz~32GHz) ≤-129dBm(32GHz~40GHz) ≤-120dBm(40GHz~46GHz) ≤-114dBm(46GHz~50GHz) ≤-114dBm(50GHz~60GHz) ≤-100dBm(60GHz~67GHz) Pre-amp On: ≤-153dBm(10MHz~20GHz) ≤-152dBm(20GHz~32GHz) ≤-147dBm(32GHz~40GHz) ≤-142dBm(40GHz~46GHz) ≤-132dBm(46GHz~50GHz) ≤-132dBm(50GHz~60GHz) ≤-118dBm(60GHz~67GHz)
Residual Response	4024A/B/C (exceptional frequency: 3.2GHz): Pre-amp Off: ≤-82dBm(10MHz~9GHz) Pre-amp On: ≤-95dBm(10MHz~9GHz)			4024D/E/F/G (exceptional frequency: 3.2GHz): Pre-amp Off: ≤-90dBm(10MHz~13GHz) ≤-85dBm (13GHz~20GHz) ≤-80dBm (20GHz~44GHz) Pre-amp On: ≤-100dBm (10MHz~32GHz) ≤-95dBm (32GHz~44GHz)
Second Harmonic Distortion (0dB attenuation, -30dBm input signal)	4024A/B/C/H/L: <-65dBc 4024D/E/F/G: <-60dBc
Absolute Amplitude Accuracy (input signal 0dBm~-50dBm, all settings are automatic couplings, 20ºC~30ºC, 30 minutes of preheating)	±1.8dB (10MHz~13GHz) ±2.3dB (13GHz~40GHz) ±2.7dB (40GHz~50GHz) ±3.0dB (50GHz~67GHz)
Input Attenuator	4024A/B/C/H/L: Attenuation Range: 0dB~30dB, 5dB Stepping			4024D/E/F/G: Attenuation Range: 0dB~50dB, 10dB Stepping
Maximum Continuous Input	4024A/B/C/H/L: +27dBm Peak Typical(≥10dB Attenuation) +20dBm Peak Typical(<10dB Attenuation) +10dBm Peak Typical(Pre-amp On)			4024D/E/F/G: +30dBm Peak Typical(≥10dB Attenuation) +23dBm Peak Typical(<10dB Attenuation) +13dBm Peak Typical(Pre-amp On)
Reference Level	Range: -120dBm~+30dBm Conversion Uncertainty: ±1.20dB
Dimension	314mm (W)×218mm (H)×91mm (D) (Excluding Handle, Stand) 338mm(W)×218mm (H)×100mm (D) (Including Handle, Stand)
Weight	4024A/B/C: ≤4.5kg	4024D/E/F/G: ≤5.1kg			4024H/L: ≤5.3kg
Working Temperature	-10ºC~+50ºC (the battery operation temperature is 0ºC~+45ºC)
Storage Temperature	-40ºC~+70ºC (the battery storage temperature is -20ºC~+60ºC)
Electromagnetic Compatibility	Conforms to GJB3947A-2009 3.9.1 Requirements
Battery operation time	4024A/B/C: about 3h		4024D/E/F/G: about 2.5h			4024H/L: 2h (typical)
Power Consumption	4024A/B/C: ≤25W		4024D/E/F/G: ≤33W			4024H/L: ≤38W
Test Interface	RF input: 4024A/B/C/D/E: Type-N Connector(female) 4024F/G: 2.4mm Connector(male) 4024H/L: 1.85mm Connector(male) RF output: Test interface of tracking generator option for 4024A/B/C: Type-N Connector(female)
Other Interfaces	10MHz Reference Input/Output: BNC (female) Connector External Triggering Input: BNC (female) Connector IF Output: BNC (female) Connector GPS Antenna Input: BNC (female) Connector

Typical Application

4024 series spectrum analyzer has advantages of wide frequency range, high performance index, high sweep speed, multiple test functions, and easy operation. It is handheld, compact and light, which can be power supplied by battery. It can be used for the field installation & calibration, repair & maintenance of electronic weapon equipment in fields of communication.

4024 serious spectrum analyzers have various measurement function modes like spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as various intelligent measurement functions such as channel power, occupied bandwidth, adjacent-channel power ratio, carrier-to-noise ratio, field strength measurement, emission mask etc.. It can provide comprehensive spectrum analysis and diagnosis service for the field test of transmitter and receiver.

Connected with external directive antenna, 4024 series spectrum analyzer can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring and illegal channel interference signal recognition.

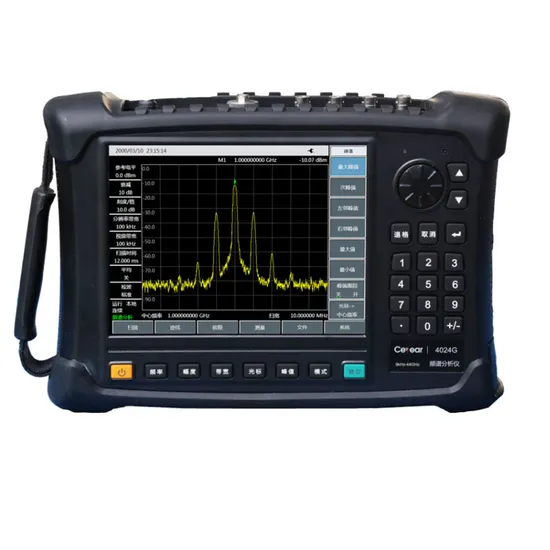

Detailed Photos
