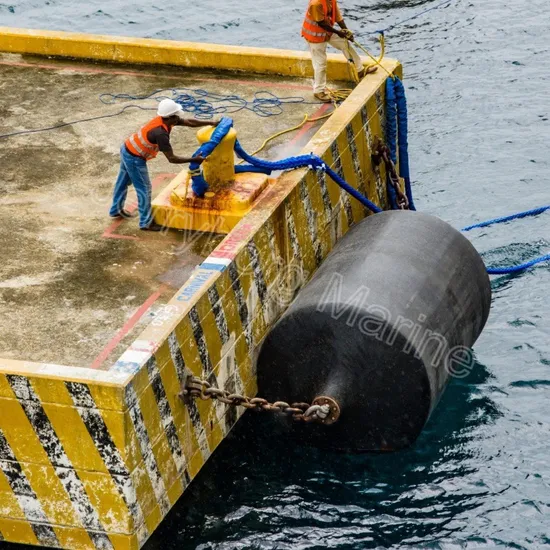

Marine Ship Boat Vessel EVA Polyurethane Foam Filled Fender

Product Description

Products Description
Features
Hull Pressures

LR	Low Reaction	103kPa	11t/m2	2.2ksf
STD	Standard	172kPa	18t/m2	3.6ksf
HC	High Capacity	224kPa	23t/m2	4.7ksf
EHC	Extra High Capacity	327kPa	33t/m2	6.8ksf
SHC	Super High Capacity	447kPa	46t/m2	9.4ksf

Dimensions and Performance

Diameter x Length		Low Reaction	Standard	High Capacity	Extra High Capacity	Super High	Weight	Chain
Metric (mm) US (ft)		Energy Reaction	Energy Reaction	Energy Reaction	Energy Reaction	Capacity	STD	Size
						Energy Reaction
600 x 1200	2 x 4	9 53	15 89	19 116	28 169	39 231	72	14
600 x 1800	2 x 6	15 88	24 147	31 191	46 280	64 383	105	14
600 x 2400	2 x 8	20 125	34 209	45 271	65 396	88 543	138	14
600 x 3000	2 x 10	26 160	43 267	57 347	83 507	113 694	171	19
700 x 1500	N/A	16 80	26 133	34 173	49 253	68 348	104	19
900 x 1500	3 x 5	25 120	42 200	54 262	80 383	110 520	136	19
900 x 1800	3 x 6	32 128	53 214	69 276	100 405	137 556	173	19
900 x 2400	3 x 8	45 182	75 302	98 391	142 574	194 787	214	19
900 x 3000	3 x 10	58 235	96 391	125 507	183 743	251 1019	268	19
900 x 3700	3 x 12	71 288	118 480	153 623	224 912	306 1250	336	19
900 x 4300	3 x 14	84 342	140 569	182 738	266 1081	363 1481	390	19
1000 x1500	N/A	28 104	47 173	61 225	89 329	122 450	154	19
1000 x2000	N/A	41 152	68 254	88 330	129 483	177 660	208	19
1200 x1800	4 x 6	49 150	81 249	106 325	155 472	212 649	308	25
1200 x2000	N/A	55 168	91 280	118 364	173 532	237 728	336	25
1200 x2400	4 x 8	72 222	121 369	157 480	229 703	313 961	399	25
1200 x3000	4 x 10	96 297	160 494	207 641	304 939	416 1286	497	25
1200 x3700	4 x 12	119 363	198 605	258 787	376 1148	515 1575	614	25
1200 x4900	4 x 16	165 504	275 841	358 1094	523 1597	716 2184	803	25
1200 x6100	4 x 20	212 646	353 1076	458 1401	670 2046	917 2798	1000	25
1350 x2500	N/A	91 251	152 418	198 543	289 794	395 1087	475	25
1500 x2400	5 x 8	110 267	183 445	239 578	348 845	476 1157	507	25
1500 x3000	5 x 10	147 357	244 596	317 774	464 1134	635 1548	638	32
1500 x3700	5 x 12	183 446	305 743	397 965	580 1410	793 1931	790	32
1500 x4300	5 x 14	219 534	365 890	475 1157	693 1690	948 2313	920	32
1500 x4900	5 x 16	255 622	424 1036	552 1348	807 1971	1104 2696	1051	32
1500 x5500	5 x 18	290 710	484 1183	629 1539	919 2246	1258 3078	1182	32
1800 x3700	6 x 12	244 497	407 827	529 1076	773 1570	1058 2153	1103	32
1800 x4300	6 x 14	296 600	494 1001	641 1303	938 1904	1283 2602	1277	32
1800 x4900	6 x 16	347 707	579 1179	752 1535	1100 2242	1505 3065	1451	32
1800 x5500	6 x 18	399 814	666 1357	865 1766	1256 2580	17313527	1634	32
1800 x6100	6 x 20	450 918	751 1530	976 1988	1428 2909	1952 3977	1808	32
2000 x3500	N/A	272 507	454 845	590 1099	863 1606	1180 2197	1240	38
2000 x4000	N/A	324 603	540 1005	702 1307	1026 1910	1404 2613	1413	38
2000 x4500	N/A	374 697	624 1161	811 1509	1186 2206	1622 3019	1595	44
2100 x4300	7 x 14	396 691	660 1152	858 1499	1254 2189	1716 2994	1615	44
2100 x4900	7 x 16	467 814	778 1357	1011 1766	1479 2580	2023 3527	1849	44
2100 x5500	7 x 18	537 937	895 1561	1163 2028	1700 2967	2327 4061	2074	44
2100 x6100	7 x 20	608 1059	1013 1766	1316 2295	1924 3354	2633 4591	2307	44
2100 x6700	7 x 22	678 1182	1129 1971	1468 2562	2146 3745	2937 5124	2532	44
2400 x3700	8 x 12	432 659	720 1094	936 1423	1367 2082	1870 2856	1859	44
2400 x4300	8 x 14	504 769	839 1281	1091 1664	1594 2433	2182 3332	2161	44
2400 x4900	8 x 16	596 911	994 1517	1292 1971	1889 2882	2584 3946	2462	51
2400 x5500	8 x 18	689 1051	1148 1753	1493 2277	2182 3332	2986 4555	2764	51
2400 x6100	8 x 20	782 1193	1303 1988	1693 2584	2476 3777	3388 5169	3066	51
2400 x6700	8 x 22	875 1335	1458 2224	1895 2891	2770 4226	3790 5783	3368	51
2500 x4000	N/A	481 718	801 1197	1041 1556	1522 2274	2083 3112	2107	51
2500 x5500	N/A	720 1073	1200 1788	1560 2324	2280 3397	3120 4649	2902	51
2700 x4300	9 x 14	634 859	1056 1432	1372 1859	2007 2718	2746 3723	2687	51
2700 x4900	9 x 16	724 982	1207 1637	1569 2126	2293 3109	3137 4257	2999	51
2700 x5500	9 x 18	840 1140	1399 1899	1820 2469	2659 3608	3638 4938	3311	51
2700 x6100	9 x 20	956 1298	1593 2162	2072 2811	3028 4106	4142 5623	3683	51
2700 x6700	9 x 22	1072 1455	1787 2424	2323 3154	3395 4608	4646 6303	4054	51
3000 x4900	10 x 16	879 1073	1466 1788	1905 2326	2785 3398	3811 4648	3331	51
3000 x5500	10 x 18	1023 1249	1706 2082	2217 2705	3240 3954	4435 5413	3768	51
3000 x6000	N/A	1111 1377	1851 2295	2406 2984	3517 4361	4813 5967	4206	64
3000 x6100	10 x 20	1167 1425	1946 2375	2530 3087	3697 4515	5059 6174	4130	64
3000 x6700	10 x 22	1311 1601	2186 2669	2842 3470	4153 5071	5682 6939	4636	64
3000 x7300	10 x 24	1431 1747	2455 2998	3099 3781	4530 5534	6199 7571	5073	64
3300 x4500	N/A	899 1014	1498 1690	1947 2197	2846 3211	3895 4394	3416	64
3300 x6500	N/A	1453 1639	2421 2731	3147 3550	4600 5189	6295 7101	5090	64
3400 x5500	11 x 18	1206 1338	2009 2229	2613 2896	3818 4235	5224 5796	4420	64
3400 x6100	11 x 20	1380 1530	2299 2549	2903 3314	4370 4849	5979 6632	4949	64
3400 x6700	11 x 22	1554 1725	2590 2874	3366 3737	4920 5458	6733 7473	5470	64
3400 x7300	11 x 24	1695 1881	2824 3132	3673 4075	5368 5952	7346 8149	6468	64

Dimension and Performance

Donut Foam Grades		Standard		High Capacity		Extra High Capacity		Super High Capacity
Donut OD & Pile	Height	Energy	Reaction	Energy	Reaction	Energy	Reaction	Energy	Reaction
1200 610	600-2400	7	116	11.5	189	17.4	288	26.1	430
1400 762	600-2400	9.6	136	15.6	221	23.7	336	35.5	502
1600 813	600-2400	12.5	155	20.4	252	31	383	46.3	573
1800 914	600-2400	15.8	174	25.8	284	39.2	431	58.6	645
2000 1016	900-2400	19.5	193	31.9	315	48.3	479	72.3	716
2200 1118	900-2400	23.6	213	38.5	347	58.5	526	87.5	788
2400 1219	900-2400	28.1	232	45.9	378	69.6	574	104	859
2600 1372	900-2400	33	251	53.9	410	81.7	622	122	931
2800 1422	900-2400	38.2	270	62.4	441	94.7	670	142	1002
3000 1524	900-2400	43.9	290	71.6	473	109	717	163	1073
3300 1676	900-2400	53.1	319	86.7	520	132	789	197	1181
3600 1829	900-2400	63.2	348	103	567	157	861	234	1288
3900 1981	900-2400	74.1	376	121	614	184	932	275	1395
