Fully Automatic Control System Wood Dry Kiln Timber Drying Chamber

Product Description

NANYANG MYHG-240 High Performance Conventional Aluminum Wood Drying Kiln China Suppliers Automatic Control System Kiln Dryer For Siam Rosewood
Product Description
MYHG STEAM HEATING WOOD DRYING KILN
Steam heating wood drying kiln uses recycled steam as the heat source that keeps on decomposing, evaporating water content rate and lipid of the materials or the inner part of the products that need drying treatment so that the target of cleaning, drying, and figuration can be achieved.
MYHG steam heating wood drying kiln introduces technical processes of advanced drying equipment in Germany and Italy. They have advanced and flexible contracting methods and they are easy to operate. The controlling precisions of temperature, humidity, and water content rate are high. They have low power consumption. The drying quality is good and without pollution.

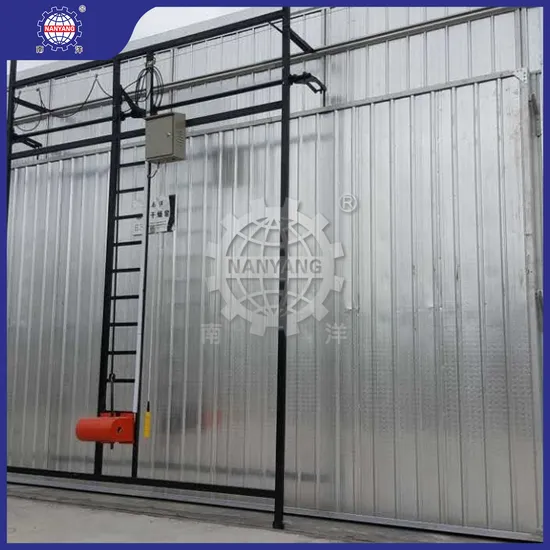

The structure of kiln body: Aluminum alloy structure, brick building structure.
Drying kiln control system: Full automatic computer control, semi-automatic control.
Product Parameters

Aluminum Alloy Structure Technical Parameters
Type	Volume in theory m³	The size of the pilling wood (L x W x H)mm	The size of the external kiln (L x W x H)mm	Motor Quantity	Total Power (Kw)	Fan Type	Drying Source
MYHG-60	30	4000 x 3600 x 4200	4400 x 5000 x 5500	2	6	Φ800	Steam
MYHG-80	40	4000 x 4600 x 4200	4400 x 6200 x 5500	2	6
MYHG-100	50	6000 x 3800 x 4200	6400 x 5000 x 5500	3	9
MYHG-120	60	6000 x 4600 x 4200	6400 x 6200 x 5500	3	9
MYHG-160	80	8000 x 4600 x 4200	8400 x 6200 x 5500	4	12
MYHG-200	100	8000 x 6000 x 4200	8400 x 8000 x 5500	5	15
MYHG-240	120	10000 x 6000 x 4200	10500 x 8000 x 5500	6	18
MYHG-300	150	12000 x 6000 x 4200	12600 x 8000 x 5500	8	24
MYHG-400	200	12000 x 7000 x 4200	12600 x 9200 x 6100	10	30

ALUMINUM ALLOY STRUCTURE CONFIGURATION:
1. Aluminum alloy steel, and stainless steel bolts.
2. Stainless steel tubes are used for internal pipelines for drying kiln
3. Bimetal composite radiating pipes are used for radiators. The base tubes are made of stainless steel.
4. High-temperature and high-humidity durable motors, Aluminum alloy casting impellers, and frames are used for recycling fans.
5. Originally imported electric heating valves, spraying steam electromagnetism valves, and dehumidifying motors.
6. Imported controlling instruments and sensors.
CIVIL CONSTRUCTION BRICKWORK CONFIGURATION:
1. Civil construction shell
2. Stainless steel tubes are used for internal pipelines for drying kiln
3. Bimetal composite radiating pipes are used for radiators. The base tubes are made of stainless steel.
4. High-temperature and high-humidity durable motors, Aluminum alloy casting impellers, and frames are used for recycling fans.
5. Originally imported electric heating valves, spraying steam electromagnetism valves, and dehumidifying motors.
6. Imported controlling instruments and sensors.
FULL AUTOMATIC CONTROL SYSTEM FEATURE:
1. The whole drying process is automatically controlled with the computer.
2. To realize automatic program control on heating, steam injection, dehumidifying, and fan-positive inversion.
3. It real-time displays and alarms of the drying process, drying parameters, and drying faults.
4. It prepares and stores 99 drying process benchmark programs according to the thickness of the different species.
5. Automatic control system: Italy Control System and NanYang Control System.
NanYang control system applies to drying ordinary wood( such as pine, fir, lauan, Merbau, etc.)
Italy control system applies to drying high-grade rare wood(such as Lobular red sandalwood, Siam Rosewood, rosewood ebony, etc.)
SEMI-AUTOMATIC CONTROL SYSTEM:
1. The control system has complete functions
2. To realize the heating, steam injection, dehumidifying, and fan-positive inversion in the stage of automatic control.
3. It real-time displays the drying process & drying parameter
4. It sets the drying benchmark by stages.
