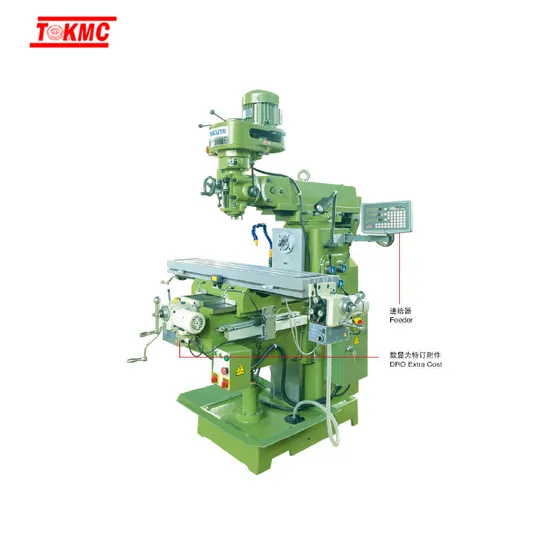

China Precision Turret Milling Machine
| US$4,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325W
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Table Size
1370X305mm 1270X254mm
Spindle Taper
ISO40 R8 Nt40 ISO30
Spindle Motor
3HP or 5HP
Transport Package
1750X1650X2340 mm
Specification
1550KGS
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Sets/Month
Product Description
China precision turret milling machineGrinded machine vise 160mm ,Clamping Kits 52PCS ,Collet Set 15PCS ,Rotary Table HV-8 ,Auto lubricating system ,Hanging control panel ,Axes DRO three axes,digital power feed on X,Y axes, motor on Z axis
| Specification | Unit | X6325W | X6330W |
| Table size | Mm | 1270x254 | 1370x305 |
| T-slot | 3-16-65 | 3-16-65 | |
| Longitudinal travel | mm | 750/850 | 800 |
| Cross travel | Mm | 400 | 380 |
| Vertical travel | Mm | 400 | 360 |
| Quill travel | Mm | 127 | 127 |
| Distance between spindle center to column | Mm | 155-635 | 155-635 |
| Distance between spindle nose to table top | Mm | 0-460 | 0-460 |
| Arm travel | mm | 400 | 500 |
| Milling head tilting | 90°(L/R) /45°(F/B) | 90°(L/R) /45°(F/B) | |
| Spindle taper | R8 (V), NT40(H) | R8 (V), NT40(H) | |
| Spindle speed | R/min | 66-4540(V),40-1300(H) | 66-4540(V),40-1300(H) |
| Power of spindle motor | Kw | 2.2(V), 3(H) | 2.2(V), 3(H) |
| Max.table safety load | Kg | 350 | 350 |
| Net weight | Kg | 1380 | 1550 |
| Machine size | Mm | 1750x1530x2340 | 1750x1650x2340 |
