Bamboo Chip Pyrolysis Machine Coconut Shell Charcoal Manufacturing Equipment with Pyrolysis Function

Product Description

Product Description

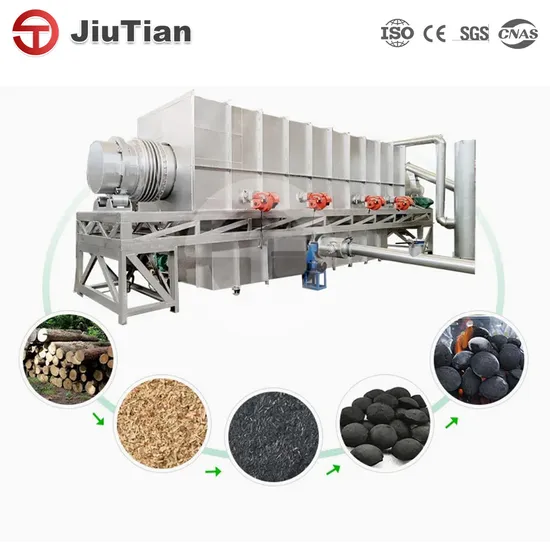

Environmentally friendly drum continuous carbonation machine, the use of carbonized flue gas purification into combustible gas generated in combustion itself, recycling to use, it can 24 hours of continuous production, has zero pollution, zero-emission, save labor, high capacity, energy-saving consumption, the advantages of a high degree of automation, advanced technology.
This machine is suitable for all kinds of powder particles biomass carbonization forestry agriculture. Such as sawdust, wood chip, bagasse, coffee grounds, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell shell shell, peanut shell, rice husk, cotton stalk, straw, etc.
Working principle
First ignited the biomass in the gasifier, the flue gas produced by burning after spraying, cooling, purification process, the combustible gas into pure (carbon monoxide, methane, ethane, etc.), as the early stage of the carbonization of heat source, to early warming carbonizer, began after feeding coking reach the set temperature.carbonation process of flue gas by spraying, cooling, purification process, make the secondary on the combustible gas generated during the combustion.According to such methods of circulation, the use of autologous flue gas combustion self,in order to achieve the effect of energy saving.And the process of flue gas after purification treatment, production environment without flue gas emissions, environmental protection, and reached to the standards for waste gas emptying.
Features and Advantages
1. Strong material adaptability. Biomass with a moisture content of less than 20% and a particle size of less than 30 mm can be carbonized;
2. The quality of carbon products is good, and the carbonization rate is high. Carbon products can be used not only as fuel carbon, but also as raw materials for agricultural carbon, metallurgical carbon and activated carbon;
3. Strong carbonization depth control ability. The residual volatile matter of charcoal products is 10-25%, which can be controlled on demand;
4. The equipment is safe and environmentally friendly, stable in operation and long in service life. Choose a large number of new materials and new processes, adopt patented technology design, precision production, after a lot of practical tests, every detail is perfect, to ensure the quality of each set of equipment.
Product Parameters

Model	Diameter(mm)	The drum length(m)	Carbon capacity(kg/h)	Drum speed(rpm)	Dimension(m)
JTTJ1010	1000	10	100-200	1.5-2.5	10.0*1.7*2.8
JTTJ1210	1200	10	200-300	1.5-2.5	10.0*2.0*3.0
JTTJ1410	1400	10	400-500	1.5-2.5	10.0*2.2*3.2
JTTJ1612	1600	12	600-800	2.0-3.0	10.0*2.4*3.5
JTTJ1912	1900	12	900-1100	2.0-3.0	12.0*2.8*3.8
JTTJ2212	2200	12	1200-1500	2.0-3.0	12.0*3.2*4.2
JTTJ2512	2500	12	1600-2000	2.0-3.0	12.0*3.5*4.5
JTTJ3012	3000	12	2200-2600	2.0-3.0	12.0*4.0*5.0
JTTJ3612	3600	12	3000-3800	2.0-3.0	12.0*4.6*5.6

Company Profile
Founded in 2003, Zhengzhou Jiutian is an enterprise with 200 employees committed to enhancing clients productively, profitability, and safety.
Jiutian Machinery products include continuous charcoal making machine, horizontal carbonization furnace, vertical carbonization stove, activated carbon plant, briquette machine, drying machine, etc.
Founded in 2003, Zhengzhou Jiutian is an enterprise with 200 employees committed to enhancing clients productively, profitability, and safety.
Jiutian Machinery products include continuous charcoal making machine, horizontal carbonization furnace, vertical carbonization stove, activated carbon plant, briquette machine, drying machine, etc.
Certifications

Shipping
FAQ
Q1. What is the MOQ?
1 set.
Q2. Can I have different models at different prices?
Yes. There are different models according to different raw materials and different capacities.
Q3: Which areas do you serve?
We have a very big market in China local market, at the same time, we have exported our carbonization furnace all over the world, including Europe, Africa, Middle-East, Asia, North America South America and so on, total more than 30 countries in the world.
Q4. How long is the quality guarantee?
One year.
Q4. Is technical support provided?
yes
