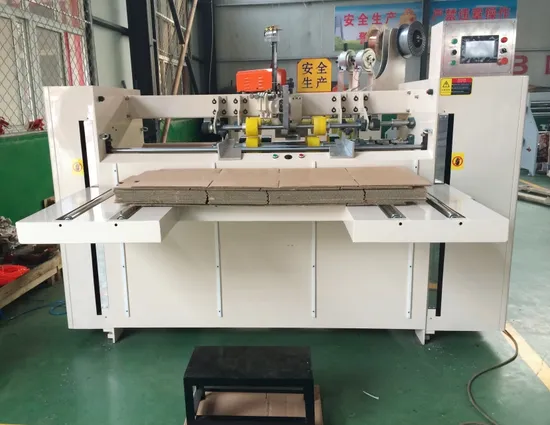

Shanghai Lincheng Semi-Automatic Stitching Machine Lum-B 2000/2500/3000
| US$10,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Condition
New
Certification
CE
Automation
Manual
Suitable for
Paper
Paper Thickness
Thick Paper
Transport Package
Wooden Package
Trademark
Lum
Origin
Kunshan
Packaging & Delivery
Package Size
9999.00cm * 9999.00cm * 5000.00cm
Package Gross Weight
4500.000kg
Product Description
Product Description LUM-B Semi-automatic stitching machineProduct Parameters
Technical parameter:
| Model and Configuration | LUM-B 2000 | LUM-B 2500 | LUM-B 3000 |
| (A+B)*2 (mm) Maximum size (A+B) x2 | 3740 (1100+770)mm | 4740mm | 5740mm |
| (A+B)*2 mm) Minimum size (A+B) x2 | 700mm | 700mm | 700mm |
| (C+D+C) Maximum size( C+D+C) | 2500mm | 2500mm | 2500mm |
| (C+D+C) Minimum size( C+D+C) | 400mm | 400mm | 400mm |
| C Minimum cover C | 20mm | 20mm | 20mm |
Maximum cover C | 310()mm 500()mm | 500 mm | 500 mm |
| B Maximum width B | 770 mm | 920 mm | 1070 mm |
| B (mm) Minimum width B | 150 mm | 150 mm | 150 mm |
| A Maximum length A | 1100mm | 1450mm | 1800mm |
| A Minimum length A | 200mm | 200mm | 200mm |
| D (mm) Maximum height D | 2000 mm | 2000 mm | 2000 mm |
| D (mm) Minimum height D | 150 mm | 150 mm | 150 mm |
| E Max nailing width E | 40 mm | 40 mm | 40 mm |
Max board feeding height | 900mm | 900mm | 900mm |
Dimension | 2850x1700x1800mm | 3350x1700x1800mm | 3850x1700x1800mm |
| (kg) Weight | 2000kg | 2300kg | 2700kg |
| (nail / min) Mechanical speed | 600nail/min | 600nail/min | 600nail/min |
Nailing number | 2-99 | 2-99 | 2-99 |
Company Profile
Features Features:
1.It features appearance of new, high speed, smooth operation,,stitching firmly,bottom die carbide, long life and other characteristics;
2.Adapt to a variety of corrugated boxes stitching,high efficiency, high speed, single,double nails with adjustable.
