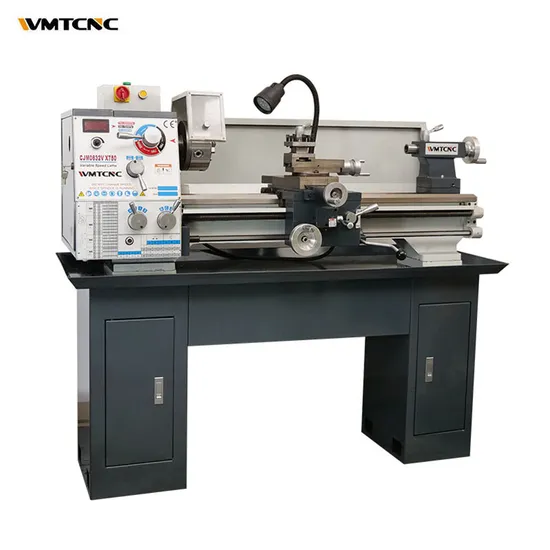

Small manual lathes CJM0632V metal precision bench lathe machine

Product Description

Product Description
Small manual lathes CJM0632V metal precision bench lathe machine main features: 1. The spindle box is driven by grinding gear, and the gear is shifted cyclically with a single handle, so that the spindle can obtain three different speeds: high, medium and low. In the selected gear, adjust the speed control knob, and the speed window will display the required cutting speed.
The optional speed large range, especially suitable for low-speed cutting.
2. 12-stage variable speed feed box, covering commonly used thread pitches.
3. Horizontal and vertical automatic feeding, using interlocking mechanism, good safety.
4. High precision and strong rigidity; the tailstock cam is locked.

Model	CJM0632V
Max. swing over the bed	320mm
Max. length of work piece	500mm	750mm
Max. swing over cross slide	195mm
Max. cross slide travel	200mm
Max. longitudinal travel over tool post	75mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speed range	3-step internal speed change, 30-2000 rpm
Metric thread kinds	18
Metric pitches range	0.2-3.5mm
Inch thread kinds range	34
Inch pitches range	4 1/2-48T.P.I
Module threads kinds	24
Module threads range	16-120D.P
Longitudinal feed range	0.05-0.35mm/r
Cross feed range	0.025-0.18mm/r
Tailstock quill travel	75mm
Tailstock quill taper	MT3
Motor power	750w
N.W/G.W(without stands)	280/320kg	290/335kg
Overall dimensions(L*W*H)	1170×680×650mm	1420×680×650mm
Packing size(without stands):(L×W×H)	1310×780×770mm	1530×780×770mm

Detailed Images

Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
