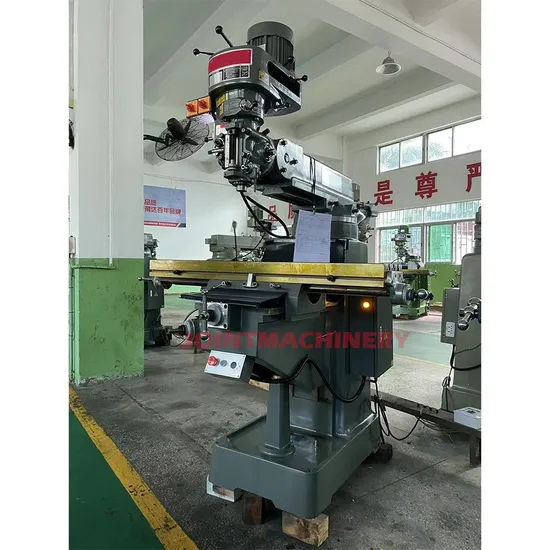

High Precision Vertical Manual Milling Machine for Metal Molds and Tools

Product Description

Strong cutting and high efficiency production capacity
√ Spindle tolerance: 0.005mm.
√ Suitable for plastics, metal mold processing and other strong cutting parts.
√ Exclusive spindle assembly technology with high precision and cutting efficiency.
1. WORKTABLE
Crafted through ultra-audio quenching, this worktable is a masterpiece of precision grinding and expert scraping. Enhance your operations with the optional rotary table, adding remarkable versatility to your machining endeavors.
2. TURRET MILLING HEAD
Our innovative turret milling head, capable of swiveling 45° forward-backward and rotating 90° left-right, empowers you to mill effortlessly at unique angles, enhancing your creative possibilities.
3. SPINDLE
Achieve superior accuracy with our high precision R8/NT30/NT40 spindle, featuring an impressive spindle runout of just 0.003mm, ensuring flawless precision in every task.
4. X/Y/Z AUTO FEED
Significantly boost your machining efficiency with X/Y axis auto feed and Z axis electric lifting, streamlining operations and maximizing productivity.
5. DRO
Customize your setup with an optional 2-axis or 3-axis DRO, designed to enhance operational precision tailored to your specific requirements.
High Precision Vertical Manual Milling Machine for Metal Molds and Tools

Model				4S
Table size			mm	1270*254*90
Travel		X axis	mm	900
		Y axis	mm	395
		Z axis	mm	325
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	400
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4540
		60HZ	rpm	80-5440
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1500*1700*2150
Weight			kg	1400
