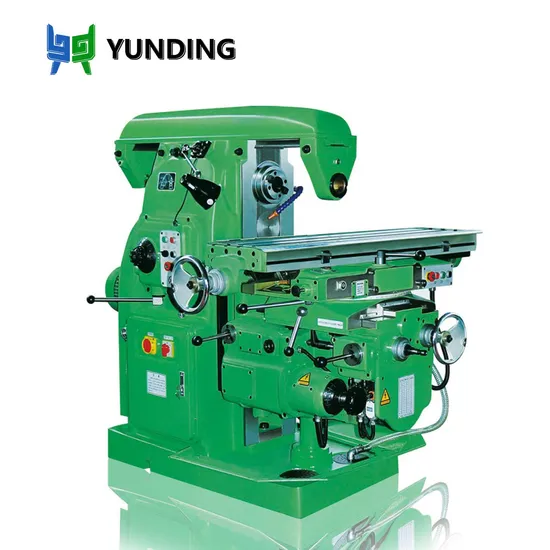

Horizontal X6140 Lifting Table Conventional Knee Type Metal Universal Milling Machine Tools

Product Description

Product Description
Horizontal X6140 Lifting Table Conventional Knee Type Metal Universal Milling Machine Tools
we are the most professional in making horizontal milling machine
Product Parameters
Performance characteristics: 1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Main technical specifications	Specifications	Units	X6140
	Table size	mm	1700×400
	Table load	kg	800
	T slot(number-width-pitch)	mm	3-18-90
	Table travel	mm	900/880
			315/300
			350/330
	Range of table feed	mm /min	XY:23.5-1180
			Z:8-394
	Rapid speed of table	mm /min	XY:2300
			Z:770
	Spindle taper		ISO50 7:24
	Spindle speed range	rpm	30-1500 (18 steps)
	Swivel angle of table	°	±45
	Distance between spindle axis and table surface	mm	30-380
	Spindle motor power	kw	11
	Feed motor power	kw	1.5
	Weight	kg	3950/4200
	Overall dimension	mm	2560×2160×2100

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
