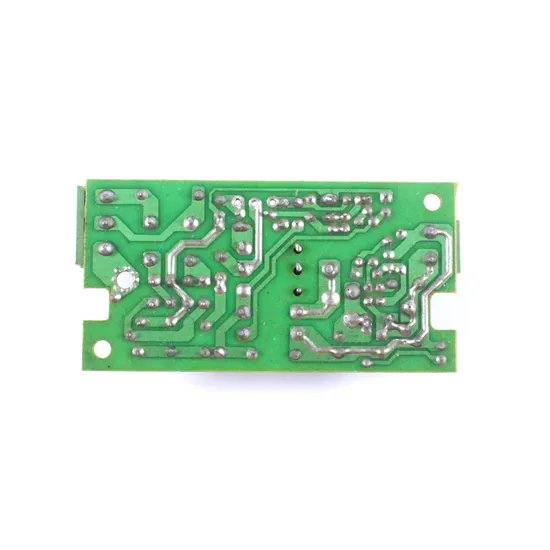

PCB Switching 10W Mini Size Adapter AC100-240V to DC Dual Output Switching Power Supply 5V 36V 12V 24V Open Frame Power Supply 2A

Product Description

PCB switching 10w mini size adapter ac100-240v to dc dual output switching power supply 5V 36v 12v 24V open frame power supply 2a
Features:
1.Low power consumption, high reliability
2.Protections: Short circuit/Over load/Over voltage
3.Cooling by free air convection
4.100% full loading burn-in test
5. 2 years warranty
6.AC86-264V input

MODEL		GF30-1G-DE	GF36-1H-DE	GF36-1K-DE	GF36-1B-DE	GF36-1L-DE	GF36-1C-DE
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	36V	48V
	OUTPUT POWER	30W	36W	36W	36W	36W	36W
	CURRENT RANGE	6A	3A	2.4A	1.5A	1A	0.75A
	RIPPLE & NOISE(max.)	120mVp-p	120mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	86 ~ 264VAC
	AC CURRENT(Typ.)	0.35A/ 116VAC 0.18A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)		78%	78%	80%	82%	82%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	<0.5mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated output voltage
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0ºC ~ +45ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20ºC ~ +85ºC 10~95% RH
	TEMP. COEFFICIENT	±0.05%/ºC
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	SAFTY STANDARDS	Refer to CE EN60950-1
	EMC STANDARDS	Refer to EN55022,EN55024,EN61000
OTHERS	DIMENSION	L70*53*H30MM
	WEIGHT	150PCS/Carton/15KG
	SHELL MATERIAL	NONE

MOQ-
No limited

Many power models-
5 Watts - 1800 Watts

Many voltage output-
5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).

New Design-
We have professional engineer to make new design as your speical requirment.

Good quality-
We have the best professional and experienced engineer and the strict QC system.

Fast delivery-
The delivery time is 1-25 days which depend on quantity and details items.

Payment term-
T/T, L/C, Paypal, Western Union, Money Gram.

Solutions-
With more than 10 years experience,we can provide professional design solution for power supply according your requirement.

Cooperation-
You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
