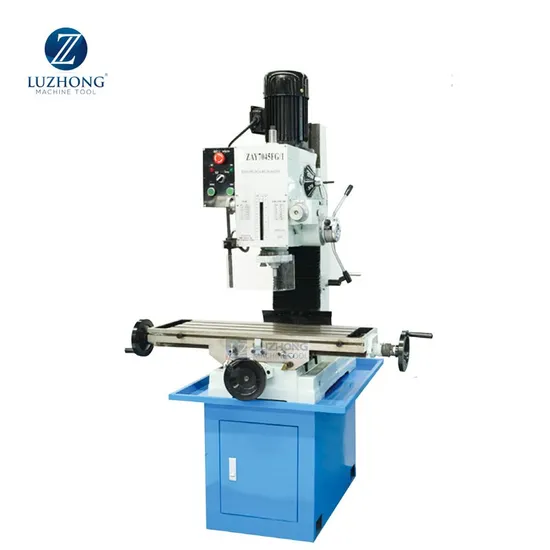

Precision Best Quality ZAY7045FG/1 Square Column Gear Drive Mill And Drill Machine
Basic Info.
Model NO.
ZAY7045FG/1
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. drilling dia.
45mm
Max.boring dia.
70mm
Max.face milling dia.
80mm
Max.end milling dia.
32mm
Min.distance from spindle axis to column
260mm
Spindle travel
130mm
Spindle taper
M.T.4 or R8
Spindle speed steps
6
Spindle speed
50Hz 80-1250 60Hz 95-1500 rpm
Spindle feed steps
0.06-0.3 mm/r
Swivel angle of headstock(vertical)
+-90
Table size
800*240(opt.1000*240)
Table travel
500*175(opt.700*175)
Main motor power
1.5kw
Transport Package
Plywood Case
Specification
770*880*1860
Trademark
LUZHONG MACHINE TOOL
Origin
China
HS Code
8459590000
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
77.00cm * 88.00cm * 186.00cm
Package Gross Weight
375.000kg
Product Description
Cheaper High Quality ZAY7045FG/1 Drilling and Milling MachineProduct Description
The main performance characteristics:
Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
And cyclic change of feeding speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Product Parameters
Product main technical Specifications:
| ITEM | ZAY7032FG/1 | ZAY7040FG/1 | ZAY7045FG/1 |
| Drilling capacity | 32mm | 40mm | 45mm |
| Max.boring diameter | 50mm | 60mm | 70mm |
| Max Face mill capacity | 63mm | 80mm | 80mm |
| Max End mill capacity | 20mm | 32mm | 32mm |
| Max distance from spindle nose to table | 450mm | 450mm | 450mm |
| Min distance from spindle axis to column | 260mm | 260mm | 260mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Auto-feeding step of spindle | 6 | 6 | 6 |
| Auto-feeding amount of spindle | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 175mm | 175mm | 175mm |
| Left and right travel of table | 500mm | 500mm | 500mm |
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Net/Gross weight | 320kg/370kg | 323kg/373kg | 325kg/375kg |
| Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
