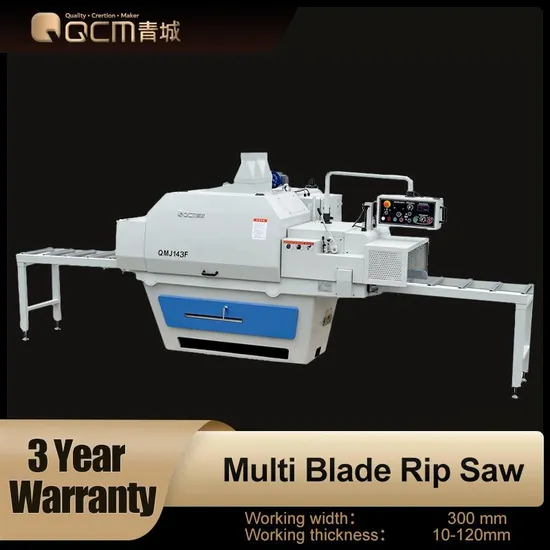

QMJ143F Multiple Circular Wood Rip Saw Machine
| US$15,300.00-15,900.00 | 1 set (MOQ) |
Basic Info.
Model NO.
QMJ143F
Power Type
Electric
Layout
Horizontal
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
3 years
Product name
Automatic Multi-blade Rip Saw
Keywords
multi rip wood saw machine
Function
woodworking machinery
Electricity
Siemens
Machine body
Casting
Voltage
380v, Can be customized
Cutter Head
Spiral cutter spindle, Can be customized
Core Components
Engine, Bearing, Gearbox, Motor, etc.
Certificate
CE & ISO
Machinery Test Report
Provided
Place of Origin
Sichuan, China
Application
Woodworking, wood flooring, double side planing
Applicable Industries
Woodworking factories
Professional solution
Make multi-blade rip cut for under 120mm
Sawmill
Doing the multi slice rip cut
Transport Package
Plywood Carton
Specification
4460X1570X1660 mm
Trademark
QCM, Smart Panther
Origin
China
HS Code
84659200
Production Capacity
1000 Units/Month
Packaging & Delivery
Package Size
446.00cm * 157.00cm * 160.00cm
Package Gross Weight
2300.000kg
Product Description
QMJ143F Multi Blade Rip Saw Woodworking Machinery Made In China Factory Manufacture Supplier 360 Multiple Circular Multi Rip Wood Saw MachineProduct Parameters
| Technical Parameter | |||
| Model | Automactic multi blade rip saw | Unit | QMJ143F |
| Specifications | Max.working width | mm | 300 |
| Working thickness | mm | 10-120 | |
| Min. working length (single/ continous) | mm | 585/300 | |
| Saw spindle dia. | mm | Φ55 | |
| Reducing sleeve dia. | mm | Φ70 | |
| Saw spindle speed | r/min | 4000 | |
| Blade dia. | mm | Φ205-Φ380 | |
| Feeding speed | m/min | 4-30 | |
| Motor Power | Total power | kW | 39.57 |
| Feeding motor | kW | 2.2 | |
| Spindle motor | kW | 37 | |
| Lifting motor | kW | 0.37 | |
| Pressure & Diameter | Suction hood dia. | mm | 2*Φ150 |
| Dimensions & Weight | Overall dimensions | mm | 4460X1570X1600 |
| Weight | kg | 2300 | |
Product Description
| 1. ENTIRE CAST IRON Extra heavy one-piece, cast Iron machine frame is specially heat treated for maximum stability and rigidity by standard configuration. | |
| 2. ANTI-REBOUND SAFETY DEVICE The anti-rebound safety device located on the infeed ensures operational safety. | |
| 3. WEAR RESISTANCE GUIDE TRACK The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance. | |
| 4. AUTOMATIC LUBRICATOR The automatic lubricator delivers frequent lubrication oil to the chain. | |
| 5. DUST REMOVAL BRUSH The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time. | |
| 6. HIGH PRECISION SPINDLE All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. | |
| 7. PROFESSIONAL ELECTRICAL APPLIANCES Imported electrical products and appliances insure the whole machine run well with a stable performance. | |
| 8. CAST IRON CHROMED FEED TABLE The entire Cast Iron - Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers. |
Company Profile
About US
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.
