50, 000 Liters LPG Gas Tank Semi Trailer LPG Tanker for Gas Transport

Product Description

Product Description
Product Parameters

Dimension of semi trailer
Tare Weight of LPG Trailer	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

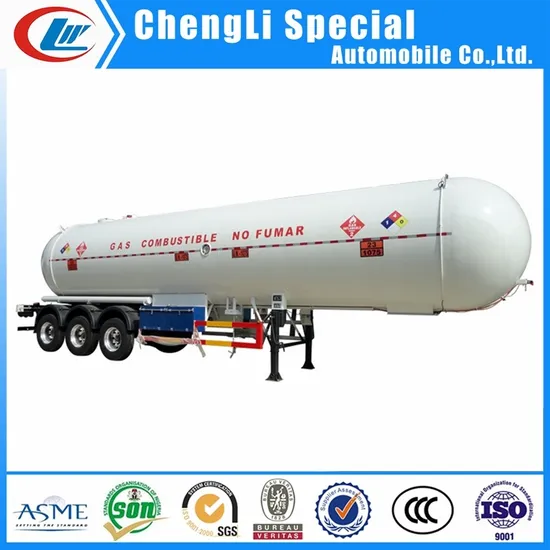

Photo for reference, finial product can be made according to exact requirements lpg tank trailer
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape semi trailer
Total Volume(m3)		56CBM 80cbm 100cbm 50cbm 120cbm 20cbm
Tanker Body Steel Sheet		Q235A/14mm semi trailer
End plate		Q235A14mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q235
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts of semi trailer
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis of semi trailer
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension for semi trailer
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire for semi trailer
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
