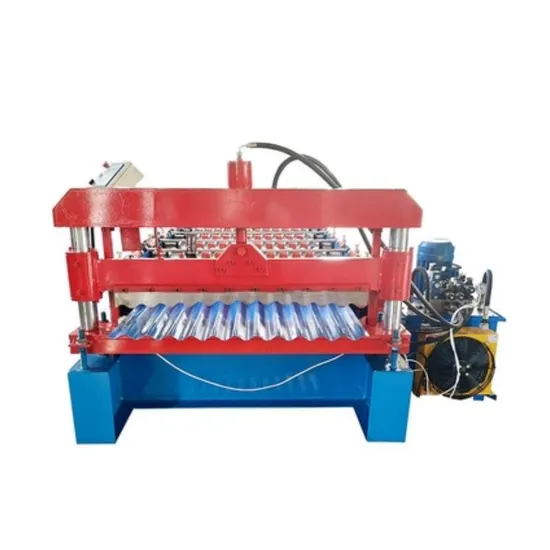

Hot Sale 850 Metal Roof Sheet Aluminum Roll Forming Machine

Product Description

Product Description

The roll forming machine is composed of feeding, forming and post-forming cutting. The color plate produced by the press is smooth and beautiful in appearance, uniform in paint pattern, high in strength and durable. It is widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other rooms and walls. Its component departments include: color steel press tile machine, PLC computer control system, hydraulic pump station system, automatic after shearing system

Product Parameters

Model No.	zk850-13
Third Party	CE,ISO
Coil Thickness	0.3-0.8mm
Weight	4t
Material of Cutting	Cr12
Mark	Zhongke
Use	Roof,Wall,Factory
D.Shaft	80mm
Machine Warranty	18 Months and Life Long Tracking Service
Specification	Customize
Production Capacity	200sets/Month

Automatic Grade	Automatic
Method	Hydraulic Pressure
Main Frame	6400*1300*950
Voltage	3kw
Package	Container
HS	8401200000
Speed	8-10m/min
Shaft Material	45 Steel Wheel quenched
Transport Package	Sea Worthy Standard Package Covered with Plastic
HS Code	8455221000
Origin	Botou

Packaging & Shipping

Our Advantages
Why choose Zhongke ?
Zhongke is a manufacturer of tile press machines, we have many years of R & D, design and production of rich industry experience. Nowadays, our company has formed a complete modern management model with great product development and innovation ability. Our products are favored by global customers because of the lightweight structure, novel design and high degree of innovation.

After years of practical experience accumulation and industry experts design layout, Our company in product
production, sales, installation, commissioning and provide technical consultation of tile press has great advantages. Our factory is a modern enterprise with strong technical strength and production capacity. Our Company products rely on high quality and low price and good technical performance, in the customer base to harvest good feedback. And we can also according to user requirements for special design and manufacturing, at the same time in the production, installation, commissioning and maintenance of color steel equipment for users to provide one-stop service and technical guidance.

Quick Details
1. De-coiler: manual operation, passively de-coiling2. Loading of de-coiler: 5T3. Frame of machine: welded with 300H beam steel4. Guide feeding way of forming: side direction roller type5. Forming machine type: wallboard and chain drive6. Diameter of shaft: ¢75mm7. Chain: 16A single row8. Motor power of forming machine: 3KW9. Line speed of forming machine: 4-16m/min10. Steps of forming machine: 1811. Roller material: superior 45# steel forging12. Thickness of Chrome plated on roller: 0.05mm13. Hydraulic station motor: 4 KW14. Hydraulic station oil pump: gear pump15. Cutting way: cut off after hydraulic shaped16. Cutting blade material: Cr1217. Cutting blade heat treatment: HRC58º-6018. Rolling thickness: 0.3-0.8 mm19. Feeding width: 1000mm20. Precision of cut-to-length: ±2mm21. Frequency changer : Panasonic22. Computer adopts PLC : Panasonic Detailed Photos
