HOWO 6*4 Cement Mini Truck 10cbm Concrete Mixer
| US$33,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
6*4 10CBM HOWO Concrete Mixer Truck
Type
Concrete Mixer
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Rotor Type
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Emission Standard
Euro 2/ Euro V
Payload
40t
Fuel
Diesel
Drive Mode
6X4
Max.Engine Power
245kw/340HP
Maximum Driving Speed
82km/H
Rated Mass
17280kg
Total Weight
31000kg
Transport Package
6950*2560*3750
Specification
40FR
Origin
China
HS Code
87054000
Packaging & Delivery
Package Size
6950.00cm * 2600.00cm * 3800.00cm
Package Gross Weight
31000.000kg
Product Description

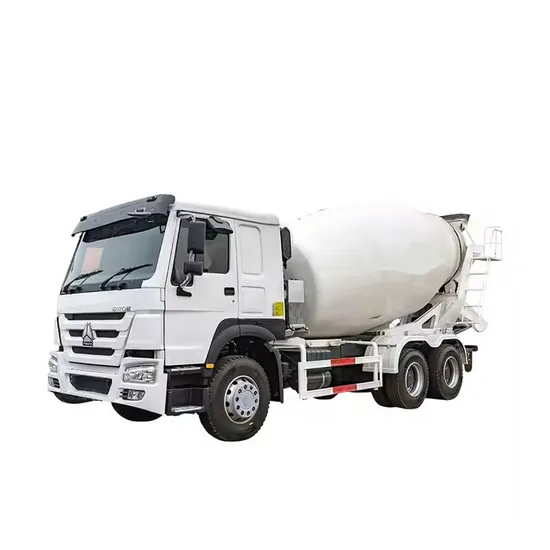

HOWO 6*4 Cement Mini Truck 10cbm Concrete MixerSINOTRUK HOWO A6 6X4 Concrete mixer truck suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business. Concrete Howo mixer truck is optimization of body structure, special mold production, beautiful appearance, concrete mixing, discharge uniformity, low rate of residual. Cost-effective concrete mixer truck with competive price is your best choice.
LDWS Lane Departure Warning (Deluxe model)
The system can issue an alert before an unconscious lane departure occurs, reminding attention to stay in the original lane and drive safely.
FCWS Collision Warning (Deluxe Edition)
the system can issue an alert to remind the brakes before a collision occurs, and at the same time, the rear lights keep flashing to remind the rear vehicle to avoid rear-end.
Gallery
SINOTRUK Howo Concrete Mixer Truck makes hauling concrete, mixing it all the way up to the job site. The best Howo concrete mixer truck chassis and mixer system mean everything happens on top of a strong foundation.
Product Parameters
| Vehicle Main Dimensions | (L x W x H)mm | 9300x2500x3950 | |
| Wheel base (mm) | 3825+1350 | ||
| Wheel track (front/rear) (mm) | 2022/1830 | ||
| Approach/Departure angle(°) | 16/24 | ||
| Weight in KGS | Tare Weight | 13500 | |
| Loading Capacity | 30000 | ||
| Front axles loading capacity | 1x9000 | ||
| Rear axles loading capacity | 2x16000 | ||
| Engine | Brand | Sinotruk | |
| Model | WD615.47 | ||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 371 | ||
| Emission standard | Euro 2 | ||
| Gearbox | HW19710 , 10 forwards & 2 reverse | ||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
| Steering Gear | ZF 8118, power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 400 | ||
| Tire | 12R22.5 Tubeless Radial Tyre, 11 pieces including one spare tire | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | ||
Mixer Body
| Thickness | End plate | 6mm high tensile strength steel |
| Mixer body | 5 mm high tensile strength steel | |
| Mixer body Volume | M3 | 10 M3 |
| Hydraulics | Motor, Pump | Italian or American Brand |
| Gear box | Italian Brand |
Detailed Photos
