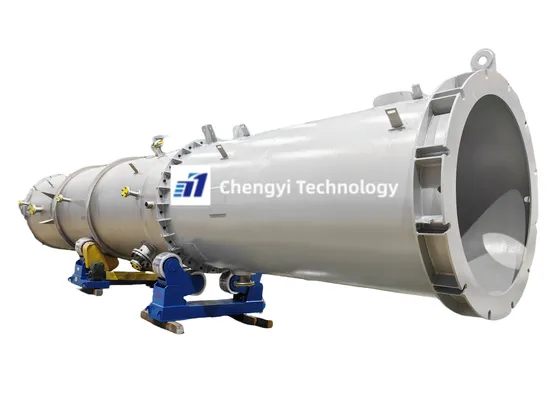

Chinese Manufacturer Supply Neutralization Buffer Tank

Product Description

Product Description
Product Parameters

Equipment Diameter	Tube Spec.	Tube QTY.	Note: max. number of tubes, and single tube pass as example
			Effective Heat Transfer Area (M2)
			Straight Tube Length (mm)
			1500	2000	2500	3000	4000	6000
DN300	φ19.05	105	~9	~12	~15	~18
	φ25.4	57	~6	~9	~11	~13
DN500	φ19.05	308	~26	~35	~44	~53	~72
	φ25.4	182	~21	~28	~35	~42	~57
DN700	φ19.05	640	~54	~73	~92	~111	~149	~226
	φ25.4	372	~42	~57	~71	~86	~116	~175
DN1000	φ19.05	1345		~152	~193	~232	~313	~473
	φ25.4	810		~122	~155	~187	~253	~382
DN1200	φ19.05	1940			~278	~335	~451	~683
	φ25.4	1180			~226	~273	~367	~555

Main Products The heat exchanger can be designed and manufactured as per Customers' drawings or requirement.

Type	Fixed tube-sheet heat exchanger	Floating head heat exchanger	U-shaped tube heat exchanger	Kettle heat exchanger	Double tube-sheet heat exchanger
Material	304/304L,316/316L 2205, TA2/TA10, Q345R,09MnNiDR, N06200, C71500, R60702 ,N10276, N08810, BFe30-1-1, etc. stainless steel , nickel alloy, titanium alloy, copper-nickel alloy, zirconium, and their clad materials
Standard	ASME GB
Process	evaporating, heating, condensing, cooling process
Application	Petrochemical, energy lithium battery, ultra-clean & high-purity electronic chemicals, fluorine chemical industry, environmental protection, fine chemical, pharmacy, dye, paints & other industries

Main Products:
Company Profile

About us we are specialized in the design andmanufacture of non-standard equipments,incl. heat exchanger, reactor, tower reactorstorage vessel, pressure vessels, internal, andskid mounted. Our advantage Our plant is 22,000 m2, with full-process production line from cutting, forming, welding, heat treatment to pickling and painting. There are non-destructive testing and mechanical property test laboratory, etc., and large-scale equipment such as laser cutting machine, non-ferrous metal plate rolling machine, hydraulic press, and high-temperature heat treatment furnace that can meet 1000°C.

Packaging & Shipping

Shipping packaging: Transport saddle, and equipment transportation nitrogen filling protection (including blind for eachflange, equipment nitrogen filling).

Certifications

We have many certificates such as ISO Certificates: 1. ASME Certificate 2. A2 Certificate 3. ISO Certificates

Patents
FAQ Q1: I haven't done business with you before, how can I trust your company?
A: We have been in manufacturing industry for over 15-20 years. The new factory is built according to the industry's
high standard of 1%.
Q2: What is the minimum order?
We manufacture non-standard equipment according to customer requirements. Order of 1 piece is acceptable.
Q3: How can I get a sample to check your quality? How long can I get the sample?
We do not provide samples because the vessel and equipment are non-standard.
Q4: What payment terms does your company accept?
A: We accept advance payment, T/T, L/C.
Q5: What's the shipment terms and delivery time of your company?
A: FOB, FCA, CFR, CIF. 120-180days.
Q6: Do you give any discount?
A: We'll try our best to offer the best price and good quality at the same time.
