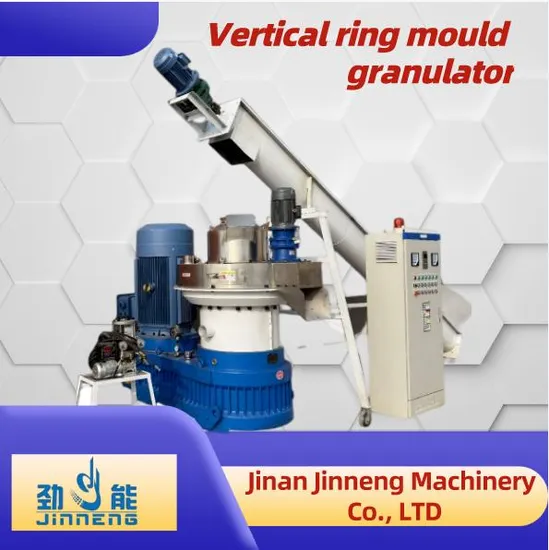

Wood Pellet Mill/Large Vertical Ring Mold Granulator

Product Description

Description: JINNENG wood biomass pellet machine, developed by Jinan Jinneng Machinery Co., LTD, is a cutting-edge biomass fuel production machinery that utilizes crushed sawdust. This innovative machine combines the best features of horizontal ring die and flat-die Pellet Mill Machines, addressing the limitations of traditional models.
MAINLY FEATURES:
1. Stainless steel double layer ring die, lifetime long, running cost low;
2. Roller shell with latest anti-wear alloy welding technology, incrase 1/3 lifetime;
3. Automatically roller lubrication system, machine can 24 hours no stop long time continaully working;
4. Strong industry gearbox inside with big modulus hard serface spiral gear strong and high efficiency, liftime gurantee period is THREE years;
5. With stainless steel pelletizing chamber cover, 304 type stainless steel, stronger and long lifetime;
6. Machine main shaft and machine main shaft bearing chamberpassed quenching and tempering treatment, best quality; 7. Gearbox oil cycline lubricating machine mainshaft bearing, high efficiency and less consumption grease.

MAINLY PARAMETERS:

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
JN560	90+1.5+0.37+1.5	1000-1200	4200	2300x1250x1950
JN560P	110+1.5+0.37+1.5	1200-1500	4500	2300x1250x1950
JN560X	132+1.5+0.37+1.5	1500-2000	5000	2300x1250x1950
JN700	160+1.5+0.37+1.5	1500-2000	6200	2800x1400x2100
JN850	220+3+0.37(0.55)+2.2	2000-3000	14500	3200x1630x2300

ONE feed port
From here pour in the granulated ingredients to be made
TWO Pellet machine outlet
Baffles are arranged on both sides to prevent particles from spreading to both sides
three pure copper motor
All copper wire winding high horsepower high efficiency accessories complete test machine delivery
four integrated design
Integrated design of motor reducer reduces transmission power consumption and improves efficiency
