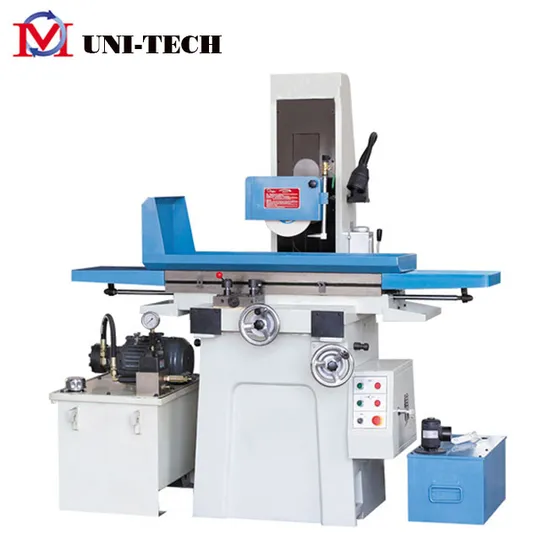

Surface Grinder Surface Grinding Machine Price
Basic Info.
Model NO.
MY820
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Surface Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
460X180mm
Table Travel
500X190mm
Max.Distance From Spindle to Table
335mm
Table Slide Way
V-Type
Number of T-Slot
1X14
Wheel Speed
2850rpm
Wheel Size
180*13
Spindle Motor
1.1kw
Coolant Pump
0.4kw
Overall Size
1550X1150X1590mm
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
84601900
Production Capacity
200sets/Month
Product Description
surface grinder surface grinding machine price| Model | Units | MY820 | MY1022 | MY1224 | MY1230 | |
| Table Size (L×W) | mm | 480*220 | 540*250 | 600*300 | 750×300 | |
| ( L×W) | ||||||
| table travel | mm | 530x220 | 560x260 | 630x320 | 780x320 | |
| speed of working table | m/min | 3-20 | ||||
| Distance From Spindle to table | mm | 450 | 450 | 530 | 530 | |
| Table Slide way | / | V-type rail with Steel-ball | Double V-type rail | |||
| V-type rail with Steel-ball | kg | 200 | 200 | 250 | 250 | |
| Number of T -Slot | mm*n | 14*1 | ||||
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 4/revolution | |||
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 2/revolution | |||
| Wheel Size (dia.×width×bore ) | mm | 200*20*31.75 | 250*25*76.2 | |||
| wheel Speeds(50HZ) | rpm | 2850 | 2450 | |||
| Spindle Motor | kw | 1.1 | 1.5 | 2.2 | 2.2 | |
| Hydraulic station motor | kw | 1.5 | 1.5 | 2.2 | 2.2 | |
| Rapid Up and down Motor | w | 120 | 120 | |||
| Working Pressure | Mpa | 3 | 3 | 4 | 4 | |
| Max.Capacity | L/min | 18 | 18 | 20 | 20 | |
| Fuel tank capacity | L | 80 | ||||
| Packing Size (L×W×H) | mm | 1700*1200*1940 | 1300*1620*1900 | 1960*1640*2020 | 1960*1640*2020 | |
| Net,Gross | kg | 750/850 | 900/1000 | 1300/1430 | 1400/1530 | |
Standard accessories:
Tool box
Balancing stand balancing bar
Flange wrench
Screwdriver
Balancing screw
Open-end wrench
Inner hexagon spnner
Wheel dresser holder
Wheel dresser
Machine flange
Wheel flange
Chuck
Optional accessories:
1. Tilting permanent chuck
2. Demagnetizer
Our Services
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
