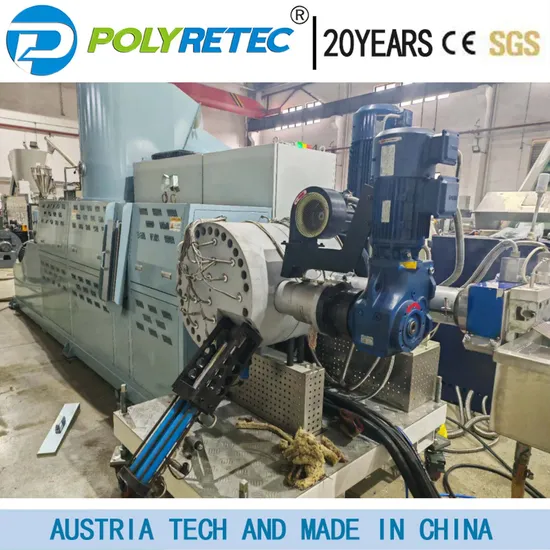

Water Ring Cutting Waste PP PE Plastic Granulating Line/PP PE Film Pelletizing Machine

Product Description

COMPACT Pelletizing Line For Post Consumer Materials
Less length,less energy needed.
For the finest double filtration quality in a compact design.
Up to 11 % less energy consumption
Up to 22 'C lower mass temperature
Up to 14 % more throughput
Product Description
01 - Project introduction
Compact
Lower temperature, less energy needed.
For the finest double filtration quality in a compact design.
This is how strong "short" can be: Compact
saves significantly on extruder length. And gets more out of it for you: the finest,
double-filtered and optimally degassed recycled pellets - produced at extremely low energy consumption. This sets the benchmark for production
efficiency in post-consumer recycling.
Proven system, enhanced with even more efficiency
Highly flexible and at the same time extremely process-stable, the double filtration
system handles the melt particularly gently.
Mild short transport screw
Improved, temperature-reduced pressure build-up
A mild, short transport screw with minimal shear
stress for the melt is sufficient, as the pressure build-up for the second filtration unit is achieved by a melt pump customised to the application. This significantly reduces residence time, melt temperature and energy consumption. Further plus points: The very strong and reliable degassing thanks to a higher degassing volume and the particularly fine final filtration.
This makes the machine the first choice for many challenging materials. Especially
when the application requires polymer-conserving processing as well as strong filtration performance in order to produce an end product with the best recycling quality.
02-HOW IT WORKS:
1.Ideal material preparation in the PreConditioning Unit
Cutting, homogenising, heating, drying, compacting, buffering and dosing - in a single stage. The dynamically controlled PreConditioning Unit is multitalented. It prepares the plastic ideally for the extruder and sets the
course for consistently high end product quality already at the beginning of the recycling process.
2.Gentle melting with low shear stress
Thanks to the preconditioning unit the extruder is fed warm material instead of cold. The advantage over conventional sys- tems: a relatively short extruder screw is enough to melt the already dry and thoroughly warmed material. The shear stress
extremely low as a result while the melt quality is high
3. Fine filtration
High-performance filtration: Part 1
Efficient filtering is one of the central strengths of the Compact. Thanks to the gentle preparation in advance, the Polyretec high-performance Laserfilter has an easy time. That is because dirt particles and impurities such as paper (e.g. from labels), fragments of wood (e.g. from pallets) and foreign polymers are hardly reduced in size before hand and are there- fore large enough for them to be easily removed from the melt. Thanks to the ingenious design of the Laserfilter scraper geometry, contaminants are lifted particularly quickly and continuously - and thus filtered even more effectively.
4.Perfect homogenisation of the melt
The final homogenisation of the melt in the Plus Zone of the extruder, i.e. downstream of the first filtration unit and upstream of degassing, enhances the subsequent degassing performance and improves the characteristics of the melt.
5.Even stronger degassing performance
The Compact features impressive, high-performance degassing. This takes place very effectively in three stages: initial degassing already occurs in the preconditioning unit. Step two is reverse extruder degassing - made possible through optimised screw design. The final double venting degassing at the extruder is particularly effective and removes gas inclusions which are still present from the melt.
6.Melt pump for temperature reduced pressure build up
Because there is no discharge metering zone and the melt pump is custom designed to the application, the pressure build-up required for the second filtration unit is highly efficient and needs a much lower temperature*. The extruder therefore does not need to build up pressure and can be much shorter (minus 10 L/D compared to the previous EREMA double filtration solution). Another advantage of the melt pump handling pressure build-up is that the extruder speed can be optimally matched to the polymer - without compromising on throughput
The lower melt temperature of the DuaFil® Compact in this area significantly reduces energy consumption. That has a positive effect on the quality of the melt. This is reflect- ed in the lower tendency to develop unpleasant odours or discolouration, which is much higher in systems that op- erate at higher temperatures. This is a real quality bonus, especially in applications involving cellulose-based materials such as paper or wood - like in supermarket film recycling, for example.
Only pre-filtered and degassed melt in melt pump
Another bonus of the plant design is the particularly advan- tageous location of the melt pump in the TVEplus® process sequence: filtration > degassing > melt pump. This means that only cleaned and degassed melt flows through the melt pump - an advantage for the service life of this component.
7.Final fine filtration
High-performance filtration:
In the second filtration unit, the already degassed plastic melt is filtered again at the ideal pressure, which is built up by the energy-saving melt pump. This additional filtration step significantly raises the quality level of the recycled pellets.
the filtration fineness of the second filter can now be particularly fine - even finer than the first filter, depending on the application. This supports further processing into end products of particularly high quality.
Product Parameters
03 - Technical parameter

Mode	Output capacity in kg/h*	Remark
PTC100PRO	200-300	Laser Filter+Melt pump+Large Area Double-Pillar Type Filter
PTC130PRO	500-600
PTC150PRO	600-750
PTC160PRO	700-850
PTC185PRO	800-1100

Depending on material properties of the polymer (moisture content, print,
degree of contamination, etc.) type and properties of the filling/reinforcing
agent and the degree of filling
Application material
04-Application
05 - Process
Conveyor belt, agglomerator/ compactor, extruder, pelletizing unit, water cooling
unit, drying unit, storage silo.
Detailed Photos
Installation Instructions
06- Customer case
1.New project 1100kg/h 5G Double Filtration Compacting Pelletizing Line
Our company has completed a new modern plastic recycling Two Stage Plastic Pelletizer Machine
with self-clean filtration system!The self-clean filter realizes automatic slag discharge.For the
second stage,we use piston type filter,which has a large filtration area.
Located in Poland
2.Double Stage PE Drip Tape Recycling Pelletizing Line from POLYRETEC
This is 1000kg/h Double Stage Compacting Water Ring Pelletizing Machine for PE drip tape.We
use double stage extruder to help our customers to remove more impurities,Using water ring
pelletizer system to ensure that we can get good performance particles.
3.PTC185 LDPE HDPE LLDPE Film Pelletizing Line With Compactor
Professional recycler for plastic film recycling.Recycling LDPE,HDPE,LLDPE,BOPP,CPP and
other different plastic films,the advanced design of the PTC series pelletizing line meets the needs of customer for recycling ditterent materials,helping customer quickly recover costs .
4.PP Non-woven Fabric /tpe gloves Shredding Compacting Recycling Extruder Machine
Vietnam listed group professional recycling company specializing in the recycling of PP non-woven fabrics,Who has EREMA recycling machine.Because of the quality of POLYRETEC,they also bought POLYRETEC recycling machine.The machine runs smoothly and the output productivity is high.
5.PE PP Film&Rigid Plastic Recycling Granulate machine
This PTC80 Compacting water ring granulate machine was designed for PP PE film&Rigid
plastic recycling.It has a wide application for many form of PP PE PS plastics,such as film,bags,
woven scraps,rigid Flakes etc.The whole line could be Fully aromatically controlled in one control panel .
Located in shanghai .
6.PP Woven Bag Recycling Pelletizing Machine
The biggest PP woven bag and jumbo bag manufacturer in china CONCH CEMENT GROUP who have post industrial PP
woven bag and woven fabric waste.The advanced technology compacting pelletizing system
gives the waste a second life.
Located in china.
7.PTC130 Double Stage PP PE Film Recycling Granulator
Recycler for mulching plastic PP PE film recycling,Who have the washing plant for waste film
crushing washing and drying process.POLYRETEC double stage pelletizing plant helps him to make
more money!
Located in Lebanon
9.POLYRETEC PTC100 Rigid Plastic Watering Pelletizing System
In this summer,our worker work hard to advance the delivery,now we have just finished this
system for our Poland client,and have test with the material exact client required,PTC series
which is specially designed for rigid PP/PE plastics,the system was running quite smooth and As European Countries have more strict safety and environment standard,our recycling line have CE
safety switch and internal locking to protect the operators,even single machine match the EU
standard,and also,we got CE certificate,that's why the client choose us in numerous of suppliers
10 . PTS Plastic Recycling Pelletising Machine For HDPE Regrind
The client is a large HDPE pipe manufacturer in JAPAN.He bought a PTS plastic recycling machine
to recycle the shredded and crushed plastic pipes.The recycled plastic pellets can be reused to
produce plastic pipes again.
Located in JAPAN
11.PTC Waste Plastic Film Bags Recycling Pelletizing Granulator
A well-known local plastic company in qatar chooses POLYRETEC recycling granulator to recycle
the in house plastic waste of the customer's factory.According to the instructions provided by
POLYRETEC,the customer completed the installation and commissioning by their-self .
Located in qatar
12.Ldpe Films Recycling Pelletizing System From Polyretec Machinery .
The Turkey customer recycles LLDPE Bags and Pe Films.This pelletizing machine is realized to
recycle the printed bags and films in one machine.The machine capacity of our PTC100 can do
350kg per hour.
Located in Malaysia
12.Ldpe Films Recycling Pelletizing System with continous laser filter From Polyretec Machinery .
The Turkey customer recycles LLDPE Bags and Pe Films.This pelletizing machine is realized to
recycle the printed bags and films in one machine.The machine capacity of our PTC100 can do
350kg per hour.
Located in Shandong china
13.Ldpe Films Recycling Pelletizing System with shredder From Polyretec Machinery .
The Moldova customer recycles LLDPE Bags and Pe Films.This pelletizing machine is realized to
recycle the printed bags and films in one machine.The machine capacity of our PTC80 can do
250kg per hour.
Located in Moldova
07 - Why POLYTEC more suitable for your investment?
With Austrian Technology & Made in China
Use our own factories to manufacture waste plastic recycling machines(plastic washing line and pelletizing line) - better quality control
With CE certificate, can meet UL standard
Quick machine service
Intelligent machine control
Low energy consumption, high output
Equipped with a complete water treatment system
Commissioning & installation:
- After all machines are delivered to buyer's factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
- Seller will prepare for visa application for their engineer, who is responsible for guidance of machine installation and testing at Buyer's factory to meet normal operation requirements.
- Buyer will buy the round-trip air ticket for Engineer if visa application is approved. Buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation, and allowance of USD100 per day for each engineer.
- Engineer will give free training lessons to labors in Buyer's factory.
- Buyer doesn't request installation and commissioning by seller engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by Buyer.
