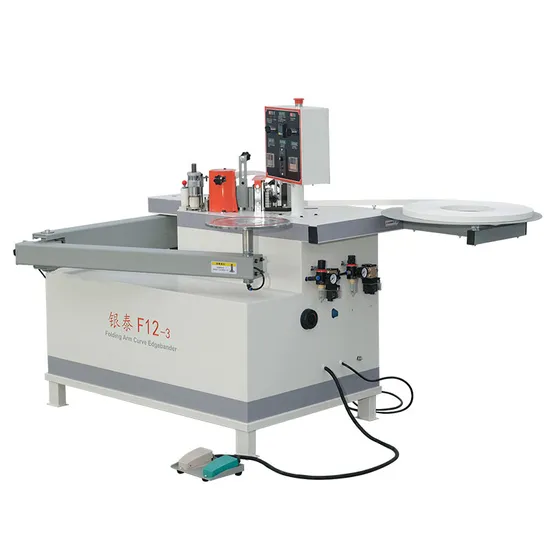

Pre Milling Corner Rounding Straight Edge Banding Machine

Product Description

Product Parameters
Folding arm curve edge banding machine solves the sealing problem of panel furniture, study table, pet furniture, RV, etc. Applications: panel furniture, custom furniture, cabinet and closet, office furniture, tables and chairs, doors and windows, wood products, decoration industry, etc.
1. Stacking arm: length 1860mm. Can solve the problem of large board processing.
2. Suction cup: suction cup diameter 300mm, vacuum adsorption, can rotate 360°, easy to operate.
3. Cutting knife assembly, widened 70mm cutting belt assembly, quick response, flat cutting edge
4. Higher 70mm 2800ml glue pot, even glue application and fast glue application.
5. Sealing materials: PVC, ABS, melamine, plastic, wood veneer, etc.

Model	F12
Voltage	220v/50hz/single phase
Total power	3.8kw
Heating power	1.6kw
Air pressure	0.5-0.8Mpa
Glue pot capacity	2800ml
Speed	0-24cm/s
Strip width	12-70mm
Strip thickness	0.4-3mm
Size	1210*1100*1070mm
Weight	175kg

Detailed Photos
Product Application
Company Profile
Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.
