5-Section Double Z Detachable Placing Boom San Hgt51 Free-Standing Form-Mounting and Self-Climbing Configurations

Product Description

HGT51 5-Section Double Z detachable placing boom free-standing form-mounting and self-climbing configurations Product Description
Boom Provides Maneuverability to Exact Point of Placement
The HGT51 placing boom is engineered to maximize concrete placement accuracy. The 360degree rotation and 5-section boom provides maneuverability to the exact point of placement with a horizontal reach of 51 meters and a reach depth of 39.6 meters.
The Hydraulic Quick Disconnect and easy four-pin connection make this boom the quickest when it comes to raising and moving as compared to any other counterpart in the industry. It also enjoys the credit of being the only tower that can free stand up to 72 meters high without a counterweight. This saves time and labor. Now, you can carry out more pours with fewer jumps.
Features
Full Hydraulic Control, Exceptional Performance
· Full hydraulic control of all boom movements provides smooth, precise control. The load sensing, proportional, pressure compensated hydraulic system provides accurate, predictable boom placement even during multi-function operation.
Rapid Installation
· Extensive application of modular design technology and quick connecting components allow rapid assembly and hoisting of placing booms.
Globally Recognized, Intelligent Control System
· The German-manufactured Siemens programmable login controller (PLC) is equipped with local, wired, or 100m ultra long-distance remote control.
· This reliable system can be operated within four user-selectable frequency bands.
Boom Cylinders are Equipped with Counterbalance Valves for Safety
· The counterbalance valve provides a locking function as an added safety measure.
Delivery Pipe Service Life Increased 3-5 Times
· The use of double-wall, wear-resistant delivery pipe has improved the service life up to 30,000-50,000m3.

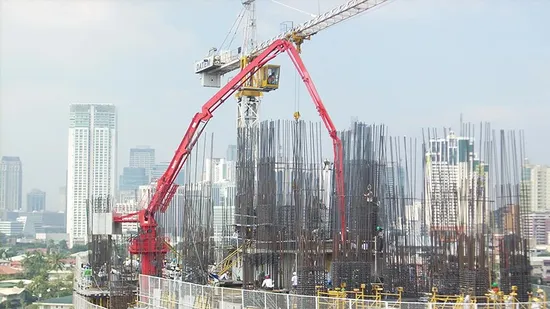

· This is 3-5 times longer than the life of an ordinary pipe. Detailed Photos
Product Parameters
Technical Data

Max Placing Radius(m)		51 m
Rotation		360°
Working Ambient Temperature		-20 ~ +50ºC
Tower Height		72.2 m
Installation		Tower
Climbing Speed(m/min)		0.5
Climbing method		Cylinder Jack-up Type
Power Supply		380V 50Hz/60Hz
Power		37 kW
System Pressure		32 Mpa
Control Systems		Manual / Radio
Pipe Cleaning Mode		Water / Dry cleaning
Total Approx. Weight		79 t
Counter Weight(t)		14 t
Boom Design		5RZ
1st Section	Length	11401mm
	Articulation	75°
2nd Section	Length	9241mm
	Articulation	180°
3rd Section	Length	8761mm
	Articulation	180°
4th Section	Length	10686mm
	Articulation	240°
5th Section	Length	11148mm
	Articulation	210°
Pipe Diameter		125 mm
End Hose Length		3 m
