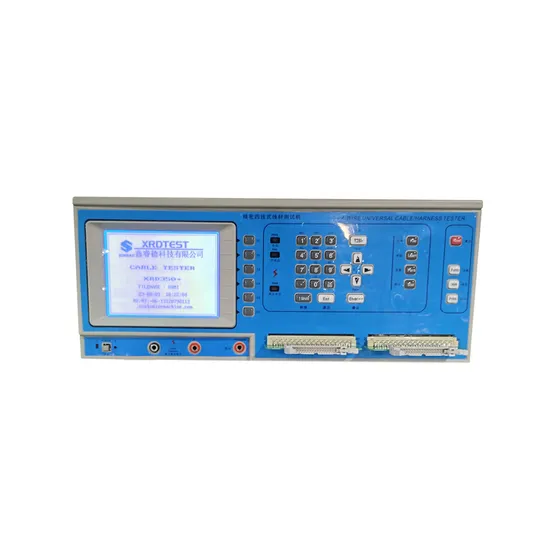

High Accuracy 4-Wire Universal Cable Tester Data Cable Comprehensive Tester

Product Description

Precision four-wire universal cable tester The system provides automatic operation diagnosis and automatic correction for the English operation interface, and the system can automatically scan for points.
The system provides advanced short-circuit/conduction tests for unilateral testing/insulation testing.
A variety of test machines are available for purchase, testing high voltage voltages and testing up to 256 test points.
Provide 320*240 resolution LCD display for continuous testing.

Specification:

SPECIFICATIONS FOR CABLE TESTER
Model	350A
Open / short: O / S	200Ω ~ 50KΩ
Instant on-resistance test: INT.COND	50mΩ ~ 10Ω ON
Resistance test: COND	50mΩ ~ 500Ω
Resistance measurement: R	0.1Ω ~ 10MΩ
Capacitance measurement: C	10pF ~ 1000μF
Diode measurement: D	0.0V ~ 7.0V
Insulation resistance: I.S	1MΩ ~ 1000MΩ
DC leakage current: IL	0.1μA ~ 1000μA
High voltage leakage current: IL	0.1mA ~ 10mA
Basic accuracy	± 1%
Test scan mode	auto / manual scan can be switched
Measurement speed	0.1Sec basic value
Measuring frequency and signal / voltage	100 ~ 100KHz, 1VAC
Low voltage measurement signal	5VDC, 50mA max Accuracy: ± 0.5%
High voltage (leakage current) test	100~700VAC
High voltage insulation test	5V~1000VDC
Test point	64pin/128pin
Memory device	512KB RAM

Features:

1. The system provides Chinese / English free switching interface.
2. Power-on self-diagnosis and self-correction.
3. The system has the functions of automatic scanning and automatic point finding.
4. The system provides advanced instantaneous short circuit and continuity testing.
5. Can be used for wire unilateral, standard, multi-segment and spot test function tests.
6. The highest AC1000V, DC1500V test voltage.
7. The system adopts advanced four-wire measurement, and the minimum value of short-circuit judgment is 200Ω.
8. Provide LCR meter module for precise measurement and analysis.
9. Bad judgment is more accurate, and the test speed is doubled compared with traditional similar products.
10. Provide 320 * 240 full Chinese / English large screen graphic LCD display.
11. Linear continuity is complete with safety regulations and component testing
12. Fully programmable continuous testing.
13. Provide a variety of interfaces for various applications.
14. The system provides statistics and printing functions, and provides statistical analysis of good and bad products.

Pictures:

Testing:
Display:
Wide application:

Contact:

FAQ:

1 Price terms
The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.
2 Can I send samples to check the machine quality.
Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.
3 How to learn the machine?
1) Offer free technology learning support in our factory
2) Provide detail user manual with detail video illustration
3) Support engineer service at site if clients asking for
4 How about the lead time and delivery time of order?
Standard model, can be ship out within 3~7days after confirmed order and deposit.
Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.
