Common Concrete Mixer Batching Plant Manufacturers

Product Description

Product Description

Common concrete mixer batching plant Manufacturers

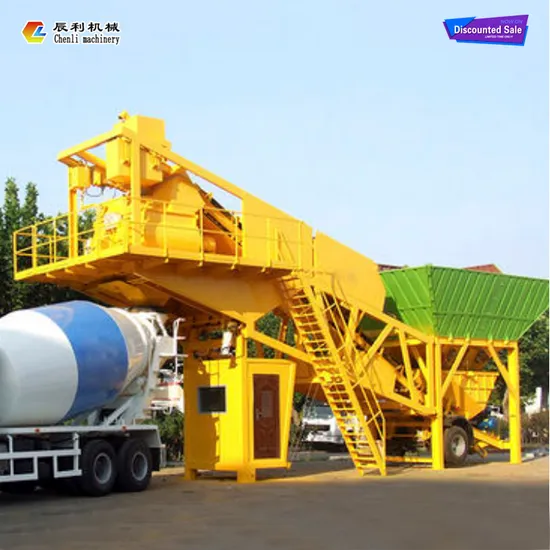

Cement Concrete Batching Plant is a concrete production equipment that integrates the material storage, weighing, transportation, mixing, unloading and fully automatic control system of the concrete batching plant into a trailer unit. It is exactly the same as the stationary concrete batching plant in all its action processes, operation methods and maintenance. At the same time, Cement Concrete Batching Plant has unique characteristics such as flexible movement, quick and easy disassembly and assembly, and simple storage and management.
At present, Cement Concrete Batching Plant s are mainly divided into two types: tractor type and trailer type. The tractor type chassis contains complete front and rear axles. The trailer type chassis only has the rear axle, and the front end is placed on the tractor saddle bridge.
Detailed Photos
1. Mixing machine 5. Batching bin 9.Screw conveyor
2.Powder weighing scale 6. Aggregate weighing scale 10.Control room
3. Additive weighing scale 7. Belt conveyor 11. Feeding bin
4. Water weighing scale 8.Cement silo 12.Discharge port
Features
Our portable Low cost energy saving cement mixer mobile batching plant is designed for quick disassembly and easy relocation. During transfers, only the screw conveyor and cement silo need to be detached, while the remaining parts can be hauled by lowering the front end. The walking platform and elevated panels must be removed, but all control cables can remain intact. The detached accessories can be transported along with the plant, ensuring a seamless and efficient transition. For installation, simply level and harden the ground to prepare the site. If the portable Low cost energy saving cement mixer mobile batching plant is not in use temporarily, it can be stored in the same state as during transportation, ensuring minimal space and effort. Other performance aspects, operating methods, and principles are consistent with those of the portable Low cost energy saving cement mixer mobile batching plant.

Product Parameters

Model	YHZS40	YHZS60	YHZS90
Theoretical productivity(t/h)	40	60	90
Mixing machine	JS1250/750	JS1500/1000	JS2250/1500
Batching system	PLD1200	PLD1600	PLD2400
Discharge height(m)	4.0	4.0	4.0

Application
All production processes, operating, and maintenance of the Cement Concrete Batching Plant and the stationary concrete batching plant are exactly the same. At the same time, Cement Concrete Batching Plant has the unique advantages of flexible movement, quick and easy disassembly and assembly, simple storage and management, etc. Therefore, the Cement Concrete Batching Plant is suitable for construction projects that need to be moved such as highways, railways, bridges, ports, water and electricity projects, etc.
Packaging & Shipping
Company Profile
Taian Chenli Construction Machinery Co., Ltd. excels in developing, designing, manufacturing, engineering, and servicing intelligent complete equipment for building materials. With a profound understanding of building intelligent equipment, we are dedicated to offering users 'practical, efficient, low-carbon, environmentally friendly, intelligent and advanced' products. Adhering to the ideals of 'excellence in quality, simplicity to the extreme,' we focus on high-tech advancements in intelligent and energy-saving equipment for new building materials. Our premier products include cement cement mobile batching plant, mortar production lines, tower type sand making machines, and environmental protection equipment. We have earned the market's trust through high standards and reliability, becoming deeply trusted by users.
FAQ
Q: Are you a factory or a trading company?
A: We are a factory and a professional manufacturer of cement mobile batching plant and cement silos.
Q: What sets you apart from the competition?
A: Our team is young and dynamic, offering innovative designs tailored to the specific needs of our clients.
requirements.
Q: How do you ensure product quality?
A: We maintain high-quality standards to minimize after-sale service costs and ensure customer satisfaction.
Q: Do you provide training and after-sale service?
A: Yes, our professional service team is dedicated to resolving any issues as quickly as possible. problems as fast as possible.
Q: How competitive are your prices?
A: We strive to offer the most cost-effective products to our valued customers.
